9.5.1.1.1 Serial Register Write

The device internal register can be programmed with these steps:

  1. Drive the SEN pin low,
  2. Set the R/W bit to 0 (bit A15 of the 16-bit address),
  3. Set bit A14 in the address field to 1,
  4. Initiate a serial interface cycle by specifying the address of the register (A13 to A0) whose content must be written, and
  5. Write the 8-bit data that are latched in on the SCLK rising edge.

Figure 54 and Table 6 show the timing requirements for the serial register write operation.

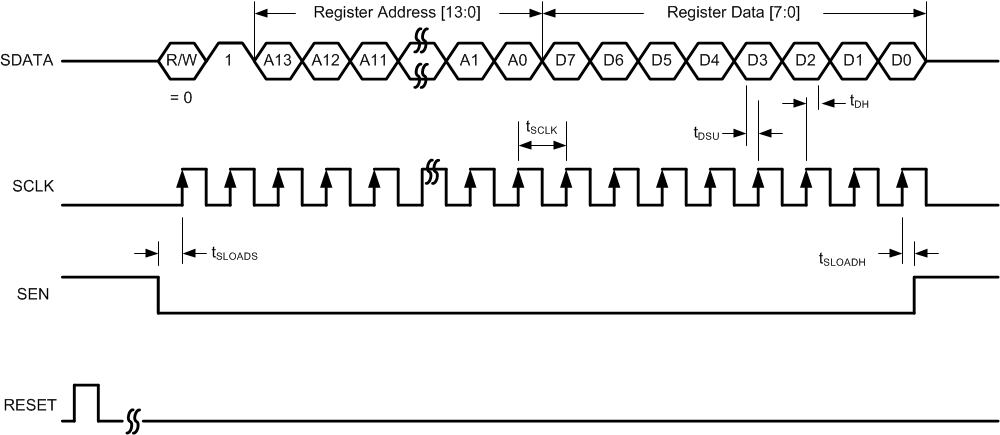

ADC3244E Srl_Rgstr_wrt_Tmg_BAS663.gifFigure 54. Serial Register Write Timing Diagram

Table 6. Serial Interface Timing(1)

MIN TYP MAX UNIT
fSCLK SCLK frequency (equal to 1 / tSCLK) > dc 20 MHz
tSLOADS SEN to SCLK setup time 25 ns
tSLOADH SCLK to SEN hold time 25 ns
tDSU SDIO setup time 25 ns
tDH SDIO hold time 25 ns
(1) Full temperature range is from –50°C to +105°C, and AVDD = DVDD = 1.8 V.
