7.10 Typical Characteristics

typical values at TA = 25°C, ADC sampling rate = 125 MSPS, 50% clock duty cycle, AVDD = 1.8 V, DVDD = 1.8 V, –1-dBFS differential input, 2-VPP full-scale, 32k-point FFT, chopper disabled, and SNR reported with a 1-MHz offset from dc when chopper is disabled and from fS / 2 when chopper is enabled (unless otherwise noted)
ADC3244E D101_SBAS671.gif
SFDR = 102.6 dBc, SNR = 72.9 dBFS, SINAD = 72.8 dBFS,
THD = 99.8 dBc, HD2 = –108.6 dBc, HD3 = –104.0 dBc
Figure 1. FFT for 10-MHz Input Signal
(Chopper On, Dither On)

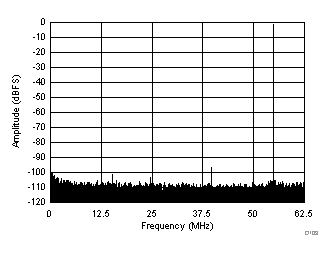

ADC3244E D103_SBAS671.gif
SFDR = 95.9 dBc, SNR = 72.7 dBFS, SINAD = 72.7 dBFS,
THD = 93.6 dBc, HD2 = –100.6 dBc, HD3 = –95.9 dBc
Figure 3. FFT for 70-MHz Input Signal (Dither On)
ADC3244E D105_SBAS671.gif
SFDR = 96.4 dBc, SNR = 72.1 dBFS, SINAD = 72.0 dBFS,
THD = 92.6 dBc, HD2 = –96.4 dBc, HD3 = –98.8 dBc
Figure 5. FFT for 170-MHz Input Signal (Dither On)
ADC3244E D107_SBAS671.gif
SFDR = 76.1 dBc, SNR = 70.8 dBFS, SINAD = 69.8 dBFS,
THD = 74.8 dBc, HD2 = –76.1 dBc, HD3 = –80.9 dBc
Figure 7. FFT for 270-MHz Input Signal (Dither On)

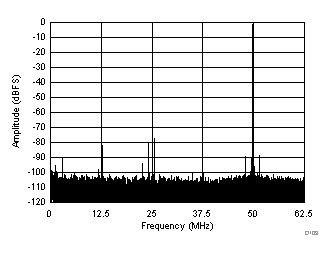

ADC3244E D109_SBAS671.gif
SFDR = 76.2 dBc, SNR = 68.3 dBFS, SINAD = 67.5 dBFS,
THD = 74.3 dBc, HD2 = –76.2 dBc, HD3 = –79.2 dBc
Figure 9. FFT for 450-MHz Input Signal (Dither On)
ADC3244E D111_SBAS671.gif
fIN1 = 46 MHz, fIN2 = 50 MHz, IMD3 = 88.3 dBFS,
each tone at –7 dBFS
Figure 11. FFT for Two-Tone Input Signal

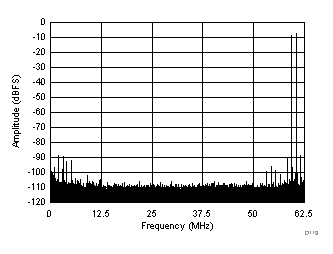

ADC3244E D113_SBAS671.gif
fIN1 = 185 MHz, fIN2 = 190 MHz, IMD3 = 86.4 dBFS,
each tone at –7 dBFS
Figure 13. FFT for Two-Tone Input Signal

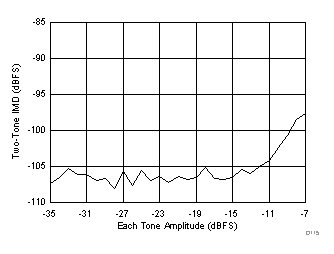

ADC3244E D115_SBAS671.gif
fIN1 = 46 MHz, fIN2 = 50 MHz
Figure 15. Intermodulation Distortion vs Input Amplitude
ADC3244E D117_SBAS671.gif
Figure 17. Signal-to-Noise Ratio vs Input Frequency

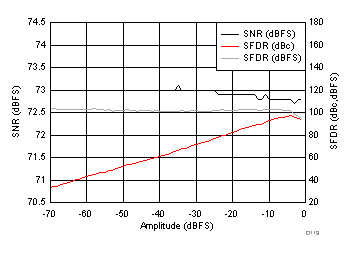

ADC3244E D119_SBAS671.gif
fIN = 30 MHz
Figure 19. Performance vs Input Amplitude
ADC3244E D121_SBAS671.gif
fIN = 30 MHz
Figure 21. Performance vs Input Common-Mode Voltage
ADC3244E D123_SBAS671.gif
fIN = 170 MHz
Figure 23. Spurious-Free Dynamic Range vs
AVDD Supply and Temperature

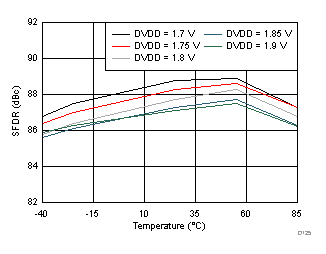

ADC3244E D125_SBAS671.gif
fIN = 170 MHz
Figure 25. Spurious-Free Dynamic Range vs
DVDD Supply and Temperature
ADC3244E D127_SBAS671.gif
fIN = 40 MHz
Figure 27. Performance vs Clock Amplitude

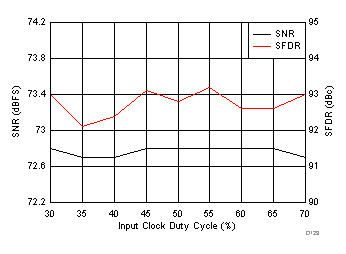

ADC3244E D129_SBAS671.gif
fIN = 30 MHz
Figure 29. Performance vs Clock Duty Cycle

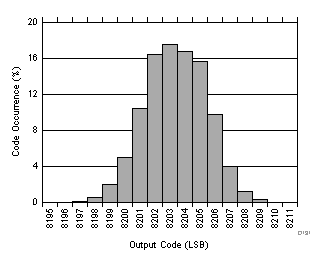

ADC3244E D131_SBAS671.gif
RMS Noise = 1.4 LSBs
Figure 31. Idle Channel Histogram

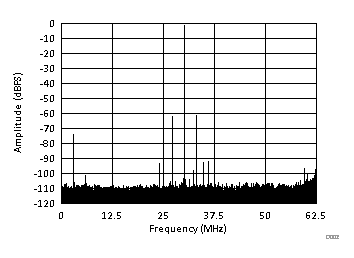

ADC3244E D002_BAS671.gif
fIN = 30.1 MHz, fPSRR = 3 MHz, APSRR = 50 mVPP,
SNR = 58.51 dBFS, SINAD = 58.51 dBFS, SFDR = 60.53 dBc, THD = –90.71 dBc, SFDR = 60.53 dBc (non 23)
Figure 33. Power-Supply Rejection Ratio Spectrum

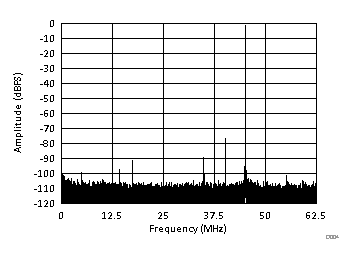

ADC3244E D004_BAS671.gif
fIN = 170.1 MHz, fCMRR = 5 MHz, ACMRR = 50 mVPP,
SNR = 69.72 dBFS, SINAD = 69.66 dBFS, SFDR = 75.66 dBc, THD = –86.98 dBc, SFDR = 75.66 dBc (non 23)
Figure 35. Common-Mode Rejection Ratio Spectrum

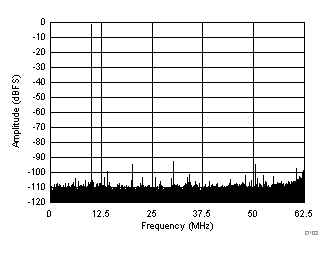

ADC3244E D102_SBAS671.gif
SFDR = 91.8 dBc, SNR = 73.5 dBFS, SINAD = 73.4 dBFS,
THD = 87.3 dBc, HD2 = –93.8 dBc, HD3 = –91.8 dBc
Figure 2. FFT for 10-MHz Input Signal
(Chopper On, Dither Off)
ADC3244E D104_SBAS671.gif
SFDR = 90.9 dBc, SNR = 73.3 dBFS, SINAD = 73.1 dBFS,
THD = 87 dBc, HD2 = –90.9 dBc, HD3 = –94.9 dBc
Figure 4. FFT for 70-MHz Input Signal (Dither Off)

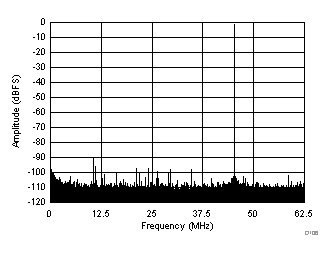

ADC3244E D106_SBAS671.gif
SFDR = 89.9 dBc, SNR = 72.8 dBFS, SINAD = 72.6 dBFS,
THD = 87.1 dBc, HD2 = –97.2 dBc, HD3 = –89.9 dBc
Figure 6. FFT for 170-MHz Input Signal (Dither Off)

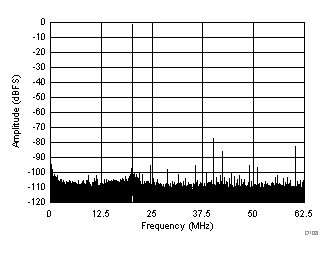

ADC3244E D108_SBAS671.gif
SFDR = 76.1 dBc, SNR = 71.2 dBFS, SINAD = 70.2 dBFS,
THD = 74.9 dBc, HD2 = –76.1 dBc, HD3 = –81.6 dBc
Figure 8. FFT for 270-MHz Input Signal (Dither Off)

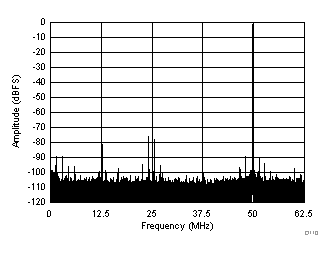

ADC3244E D110_SBAS671.gif
SFDR = 75.3 dBc, SNR = 69.1 dBFS, SINAD = 67.8 dBFS,
THD = 72.7 dBc, HD2 = –76.7 dBc, HD3 = –75.3 dBc
Figure 10. FFT for 450-MHz Input Signal (Dither Off)

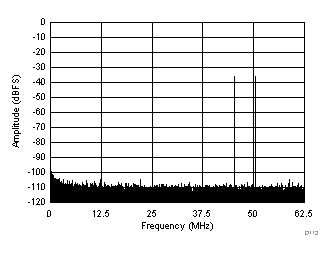

ADC3244E D112_SBAS671.gif
fIN1 = 46 MHz, fIN2 = 50 MHz, IMD3 = 90.8 dBFS,
each tone at –36 dBFS
Figure 12. FFT for Two-Tone Input Signal

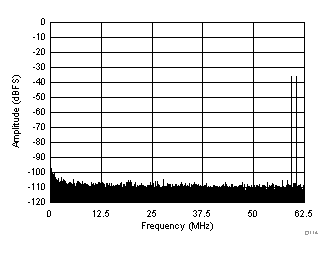

ADC3244E D114_SBAS671.gif
fIN1 = 185 MHz, fIN2 = 190 MHz, IMD3 = 87.28 dBFS,
each tone at –36 dBFS
Figure 14. FFT for Two-Tone Input Signal

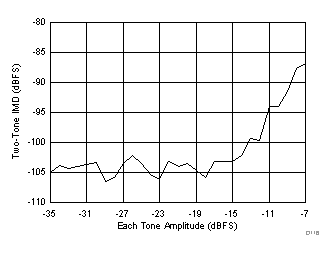

ADC3244E D116_SBAS671.gif
fIN1 = 185 MHz, fIN2 = 190 MHz
Figure 16. Intermodulation Distortion vs Input Amplitude

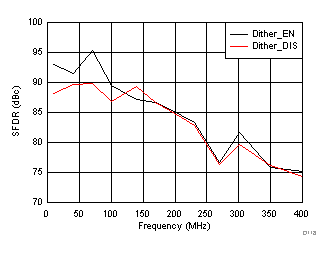

ADC3244E D118_SBAS671.gif
Figure 18. Spurious-Free Dynamic Range vs
Input Frequency

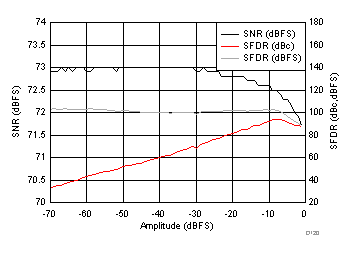

ADC3244E D120_SBAS671.gif
fIN = 170 MHz
Figure 20. Performance vs Input Amplitude

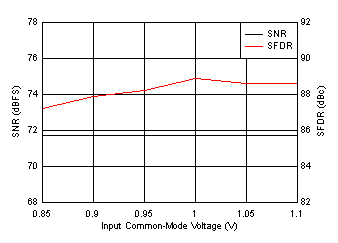

ADC3244E D122_SBAS671.gif
fIN = 170 MHz
Figure 22. Performance vs Input Common-Mode Voltage

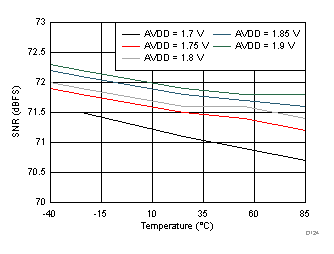

ADC3244E D124_SBAS671.gif
fIN = 170 MHz
Figure 24. Signal-to-Noise Ratio vs
AVDD Supply and Temperature

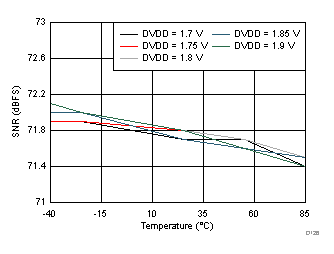

ADC3244E D126_SBAS671.gif
fIN = 170 MHz
Figure 26. Signal-to-Noise Ratio vs
DVDD Supply and Temperature

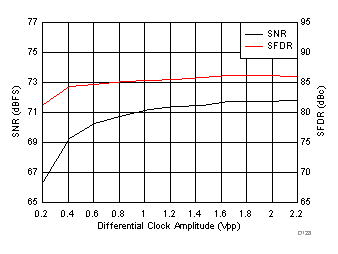

ADC3244E D128_SBAS671.gif
fIN = 150 MHz
Figure 28. Performance vs Clock Amplitude
ADC3244E D130_SBAS671.gif
fIN = 150 MHz
Figure 30. Performance vs Clock Duty Cycle

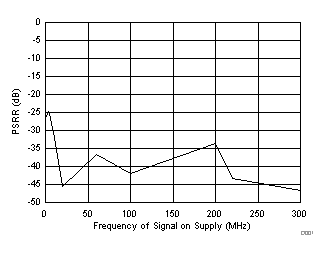

ADC3244E D001_BAS671.gif
fIN = 30 MHz, AIN = –1 dBFS,
test signal amplitude = 50 mVPP
Figure 32. Power-Supply Rejection Ratio vs
Test Signal Frequency

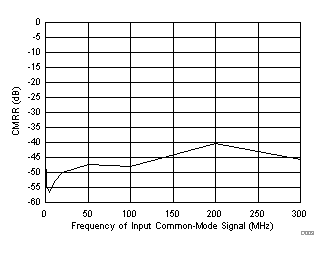

ADC3244E D003_BAS671.gif
fIN = 30 MHz, AIN = –1 dBFS,
test signal amplitude = 50 mVPP
Figure 34. Common-Mode Rejection Ratio vs
Test Signal Frequency

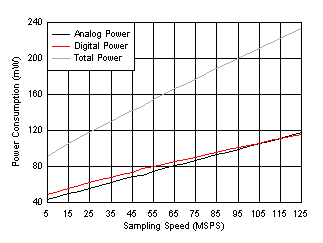

ADC3244E D009_SBAS672.gif
Figure 36. Power vs Sampling Frequency (1-Wire Mode)
