7.3.5 Buck Converters

The DLPA3005 contains one general purpose buck converter and a supporting LDO (LDO_BUCKS). The programmable 8-bit buck converter can generate a voltage between 1 V and 5 V and have an output current limit of 3 A. General purpose buck2 (PWR6) is currently supported. One buck converter and the LDO_BUCKS is depicted in #DLPS0412032.

The two DMD/DLPC buck converters discussed earlier in GUID-43B6075D-C785-4CA8-9627-1200BC377658.html#GUID-43B6075D-C785-4CA8-9627-1200BC377658 have the same architecture as these three buck converters and can be configured in the same way.

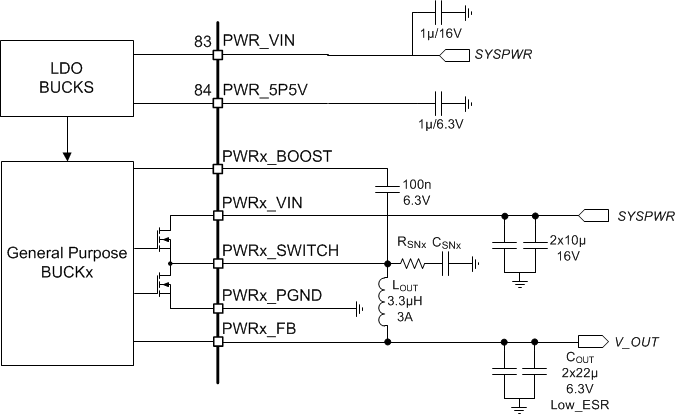

GUID-B3B65FF6-B520-4E34-A703-0D778FAA71B3-low.gif Figure 7-15 Buck Converter
