2.3.1 MSP430FR2633 MCU Block Diagram

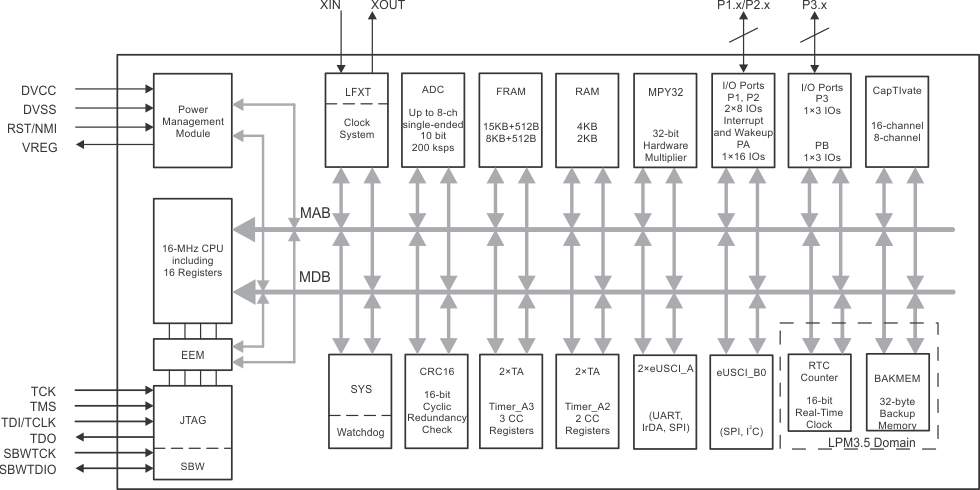

MSP430FR2633 MCUs feature a diverse peripheral set that makes them ideal for use in many capacitive sensing applications. Figure 2 shows the block diagram of the MSP430FR2633 MCU.

TIDM-02004 SLAS942_Functional_Block_Diagram.gifFigure 2. Block Diagram of MSP430FR2633
