3 Device Markings

Figure 3-1 provides an example of the TMS320F280x device markings and defines each of the markings. The device revision can be determined by the symbols marked on the top of the package as shown in Figure 3-1. Some prototype devices may have markings different from those illustrated. Figure 3-2 shows an example of device nomenclature.

GUID-AFBDE78D-CCC1-4056-B159-2741A2739A42-low.gifFigure 3-1 Example of Device Markings

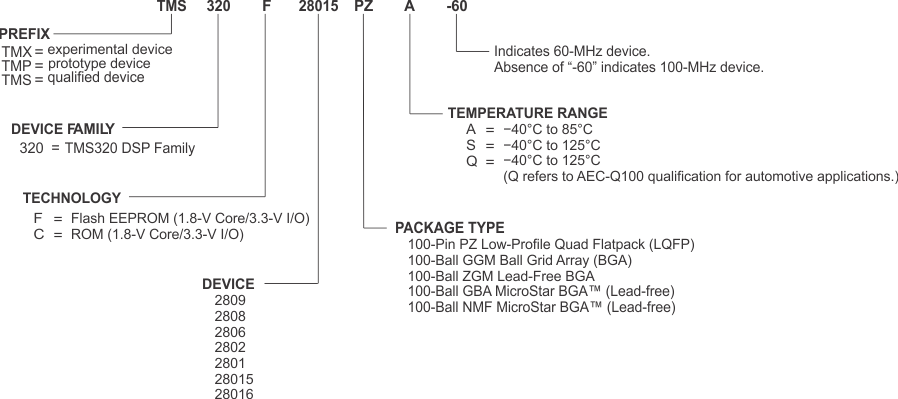

GUID-B775439D-08E9-43DA-92BE-01817F7B3C76-low.gifFigure 3-2 Example of Device Nomenclature
Table 3-1 Determining Silicon Revision From Lot Trace Code (F2809)
SILICON REVISION CODESILICON REVISIONREVISION ID
Address: 0x0883		F2809 COMMENTS
Blank (no second letter in prefix)Indicates Revision 00x0000This silicon revision is available as TMS.
AIndicates Revision A0x0001This silicon revision is available as TMS.
Table 3-2 Determining Silicon Revision From Lot Trace Code (C2801 and C2802)
SILICON REVISION CODESILICON REVISIONREVISION ID
Address: 0x0883		C2801, C2802 COMMENTS
Blank (no second letter in prefix)Indicates Revision 00x0000This silicon revision is available as TMX only.
AIndicates Revision A0x0001This silicon revision is available as TMS.
Table 3-3 Determining Silicon Revision From Lot Trace Code
(F2801, F2802, F2806, F2808, F28015 and F28016)
SILICON REVISION CODESILICON REVISIONREVISION ID
Address: 0x0883		F2801, F2802, F2806, and F2808 COMMENTSF28015 and F28016 COMMENTS
Blank (no second letter in prefix)Indicates Revision 00x0000This silicon revision is available as TMX only.TI internal only
AIndicates Revision A0x0001This silicon revision is available as TMX only.TI internal only
BIndicates Revision B0x0002This silicon revision is available as TMS.TI internal only
CIndicates Revision C0x0003This silicon revision is available as TMS.This silicon revision is available as TMS.
