PCB Layout

The layout source files for the LAUNCHXL-F2800137 are included in the design files and can be downloaded at this link: LAUNCHXL-F2800137 Design Files.

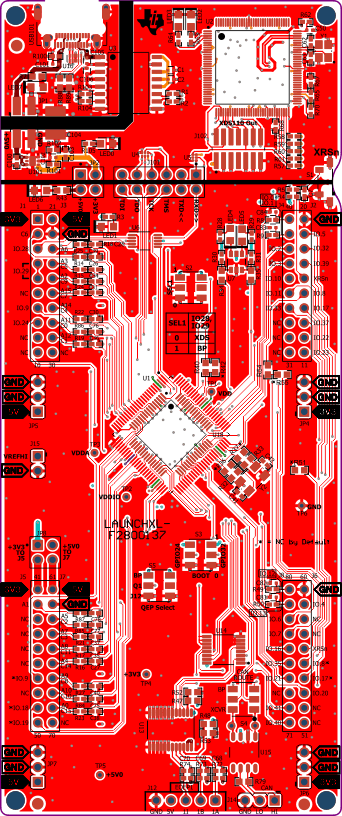

GUID-20211229-SS0I-MTWP-QSNX-SXPQJV6X4PKB-low.gif Figure 4-1 Top Signal - Layer 1
GUID-20211229-SS0I-QNZS-MJ3X-8KDWBMCV1LD7-low.gif Figure 4-2 GND - Layer 2
GUID-20211229-SS0I-B7RR-N1SD-BHDGPQWNMGJR-low.gif Figure 4-3 PWR - Layer 3
GUID-20211229-SS0I-XRH4-BFW5-3CZCSDFGN34G-low.gif Figure 4-4 Bottom Signal - Layer 4
