3 TPS62184EVM-581 Test Results

The TPS62184EVM-581 was used to take the data in the TPS62184 data sheet (SLVSCQ5). See the device data sheet for the performance of this EVM.

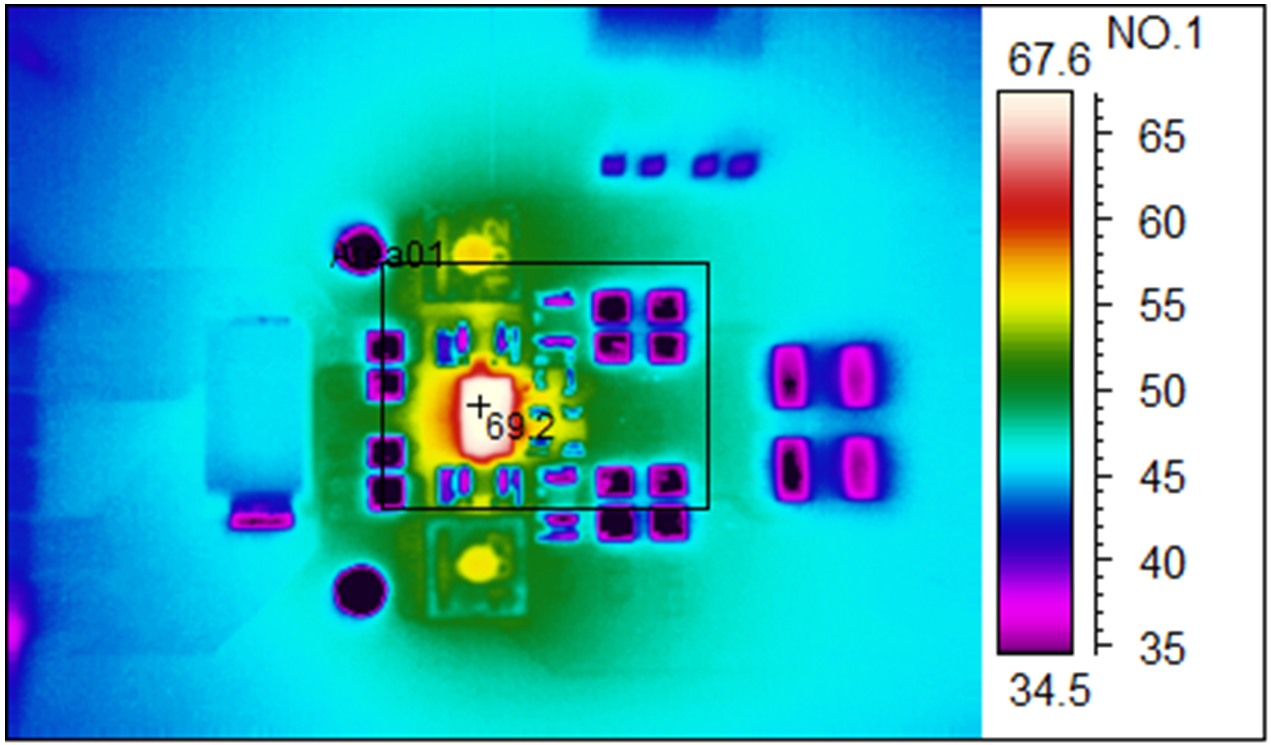

GUID-950BDA34-A529-4D70-B002-A31B7F6CD4E5-low.pngFigure 3-1 Thermal Performance (VIN = 17 V, Load = 6 A)
WARNING:

GUID-406D7AB6-C0EB-497F-B4BA-45F7D1FBCEAC-low.png Hot surface. Contact may cause burns. Do not touch!

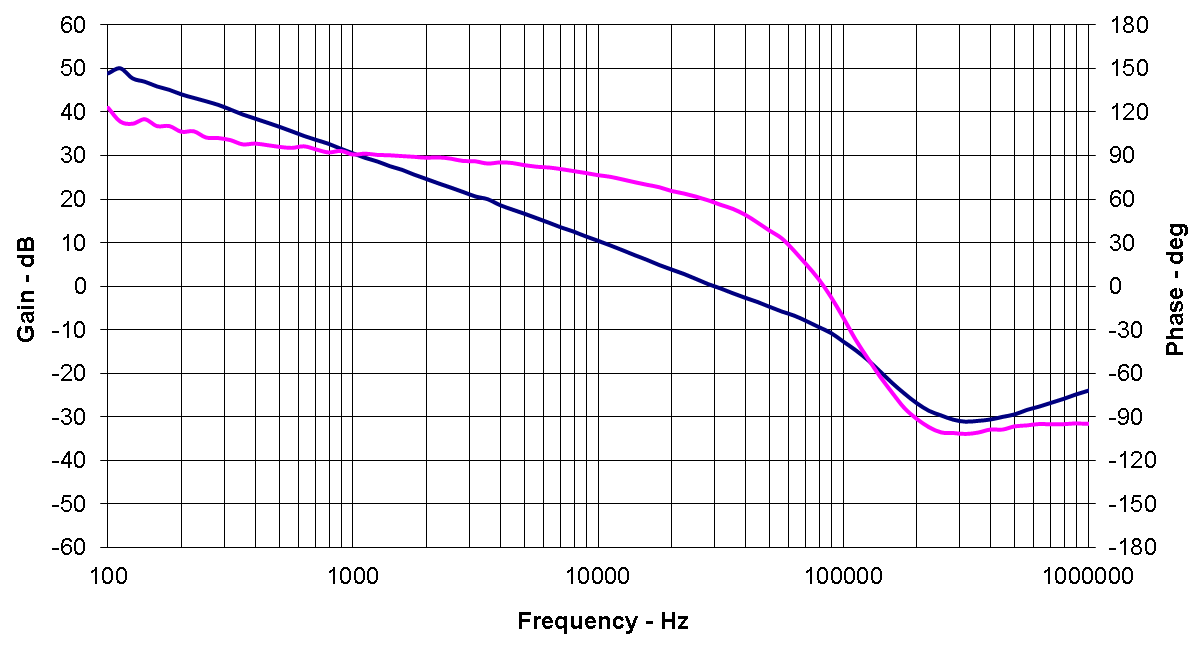

GUID-784B793C-63D9-4EDD-BD45-AB9C6D5462C7-low.pngFigure 3-2 Loop Measurement (VIN = 12 V, Load = 6 A, 50-Ω resistor added in series with R1)
