2.2.4 Auto-Resonance Tracking

Figure 2-9 and Figure 2-10 below showcase the advantages of the Smart Loop Architecture which includes auto-resonance tracking, automatic overdrive, and automatic braking. The two images below show the difference in acceleration between LRA auto-resonance ON and LRA auto-resonance OFF. Notice that the acceleration is higher when driven at the resonant frequency. The auto-resonance ON waveform has 1.32 G of acceleration and the auto-resonance OFF waveform has 0.92 G of acceleration. The auto-resonance ON waveform has 43% more acceleration.

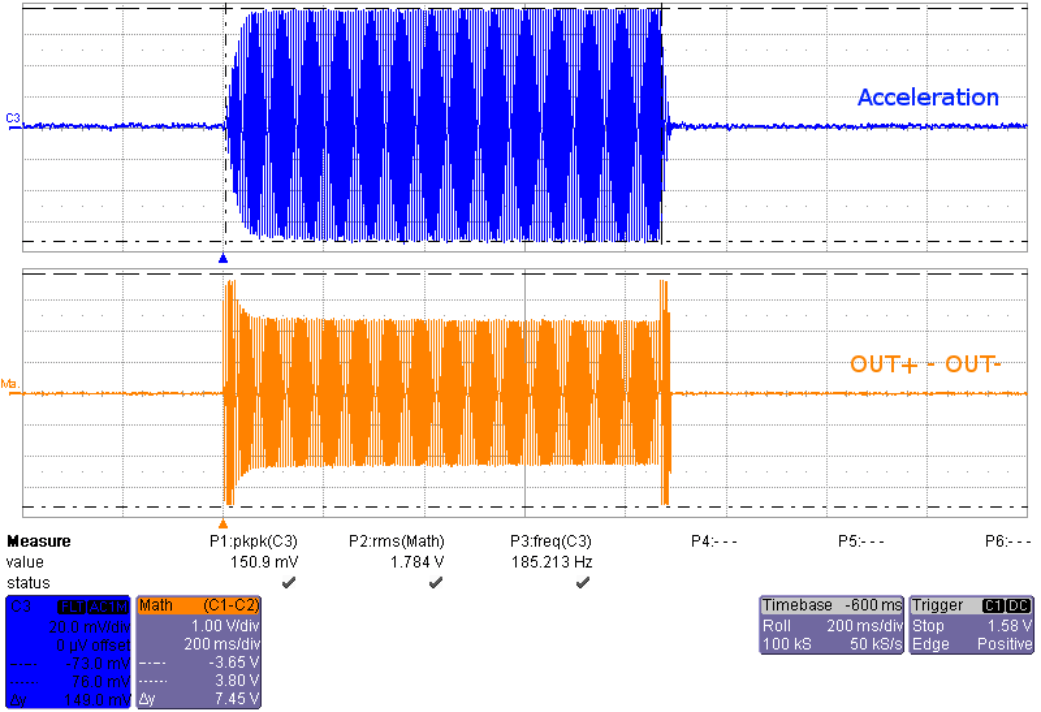

GUID-139216D3-4D4E-4BEF-B98A-6926A9938643-low.gifFigure 2-9 LRA Auto-Resonance ON Waveform (Button 1)

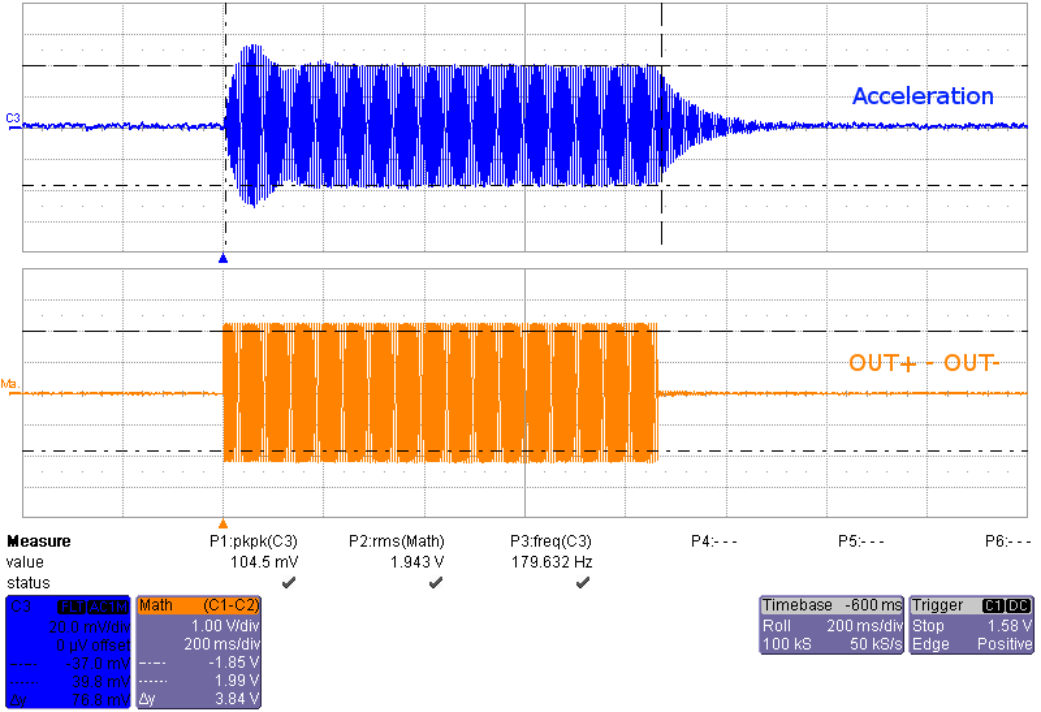

GUID-8E5D7ADB-B64C-4F5C-BC13-296788CCF2D1-low.gifFigure 2-10 LRA Auto-Resonance OFF Waveform (Button 2)

The reason for higher acceleration can be seen in the acceleration versus frequency graph below. The LRA has a very narrow operating frequency range due to the properties of a spring-mass system. Furthermore, the resonance frequency drifts over various conditions such as temperature and drive voltage. With the Smart Loop auto-resonance feature, the DRV2625 dynamically tracks the exact resonant frequency to maximize the vibration force.

GUID-5CCAACC7-7F60-43B0-9C10-2D5227A21120-low.pngFigure 2-11 Acceleration Versus Frequency
