7.6 Stability Measurements

tps65313Q1e1_buck1_gain_phase_plot.gifFigure 30. BUCK1 Gain and Phase Plot With 1-A Load Current for VIN = 13 V
(Phase Margin ≈50 Degree, Bandwidth > 100 kHz)

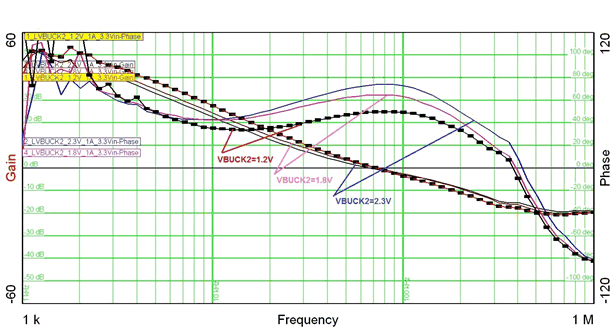

tps65313Q1e1_buck2_gain_phase_plot.gifFigure 31. BUCK2 Gain and Phase Plot With 1-A Load Current for VIN = 3.3 V
(Phase Margin >50 Degree, Bandwidth ≈75 kHz)
tps65313Q1e1_boost_gain_phase_plot.gifFigure 32. BOOST Gain and Phase Plot With 0.3-A Load Current for VIN = 3.3 V
(Phase Margin >80 Degree, Bandwidth ≈20 kHz)
