10 Transient Response
Figure 11. VIN = 5 V, VOUT = 0.8 V, 1 A Load Step

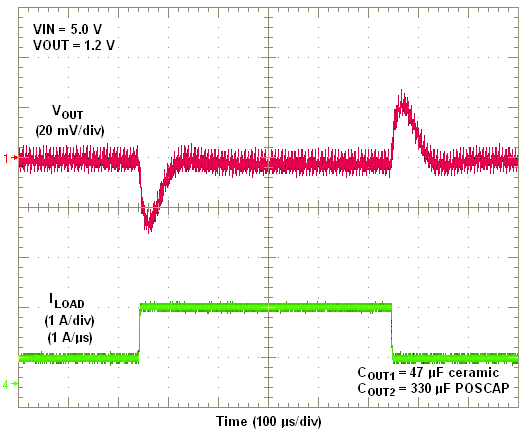

Figure 13. VIN = 5V, VOUT = 1.2V, 1A Load Step
Figure 15. VIN = 5V, VOUT = 1.8V, 1A Load Step

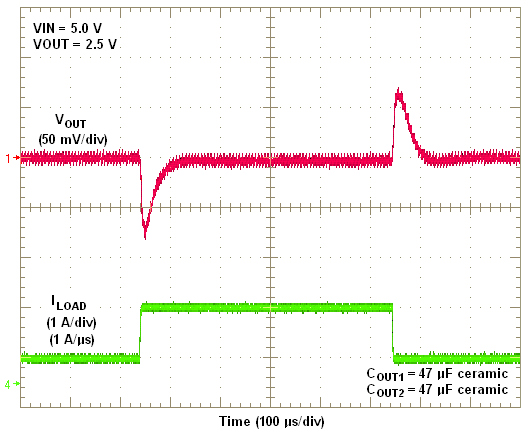

Figure 17. VIN = 5V, VOUT = 2.5V, 1A Load Step
Figure 12. VIN = 3.3 V, VOUT = 0.8 V, 1 A Load Step
Figure 14. VIN = 3.3V, VOUT = 1.2V, 1A Load Step
Figure 16. VIN = 3.3V, VOUT = 1.8V, 1A Load Step
Figure 18. VIN = 5V, VOUT = 3.3V, 1A Load Step
