6.7 Typical Characteristics (VIN = 3.3 V)

The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 6, Figure 7, and Figure 8. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100 mm × 100 mm double-sided PCB with 1 oz. copper. Applies to Figure 9.
TPS84210 3_3VEfficiency.pngFigure 6. Efficiency vs. Output Current

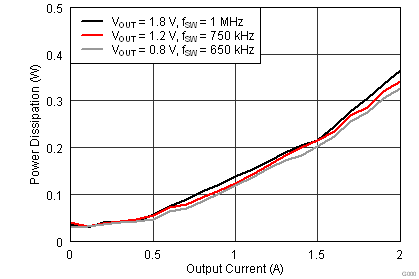

TPS84210 3_3Pdis.pngFigure 8. Power Dissipation vs. Output Current

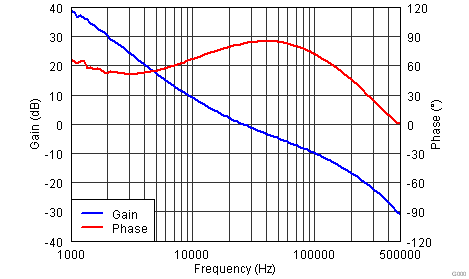

TPS84210 3_3BodePlot.pngFigure 10. VOUT= 1.8 V, IOUT= 2 A, COUT1= 47 µF ceramic, COUT2= 100 µF POSCAP, fSW= 1 MHz

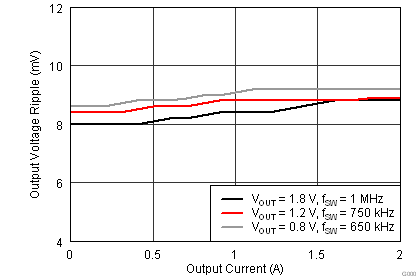

TPS84210 3_3VRipple.pngFigure 7. Voltage Ripple vs. Output Current
TPS84210 SOA_flat.pngFigure 9. Safe Operating Area
