ZHCSI09S June 2010 – August 2018 TPS65911
PRODUCTION DATA.

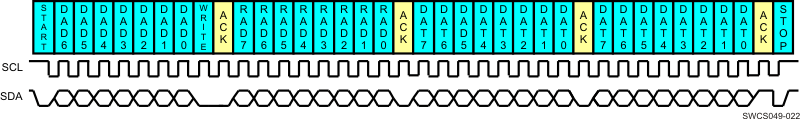

A write access is initiated by:
The following N bytes represent the data to be written in the internal register starting at the base address and incremented by one at each data byte (see Figure 6-9).

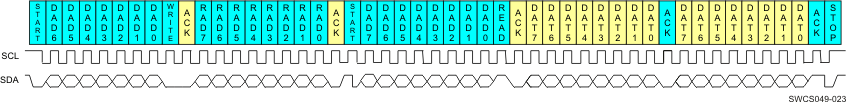

A read access is initiated by:
The device replies by sending a fourth byte, representing the content of the internal registers, starting at the base address and next consecutive ones (see Figure 6-10).
