6.8 Typical Characteristics

TPS59632-Q1 Startup PGOOD.pngFigure 1. 3-phase start up behavior showing EN input and PGOOD output. Input Voltage = 5V, Load current = 10A.

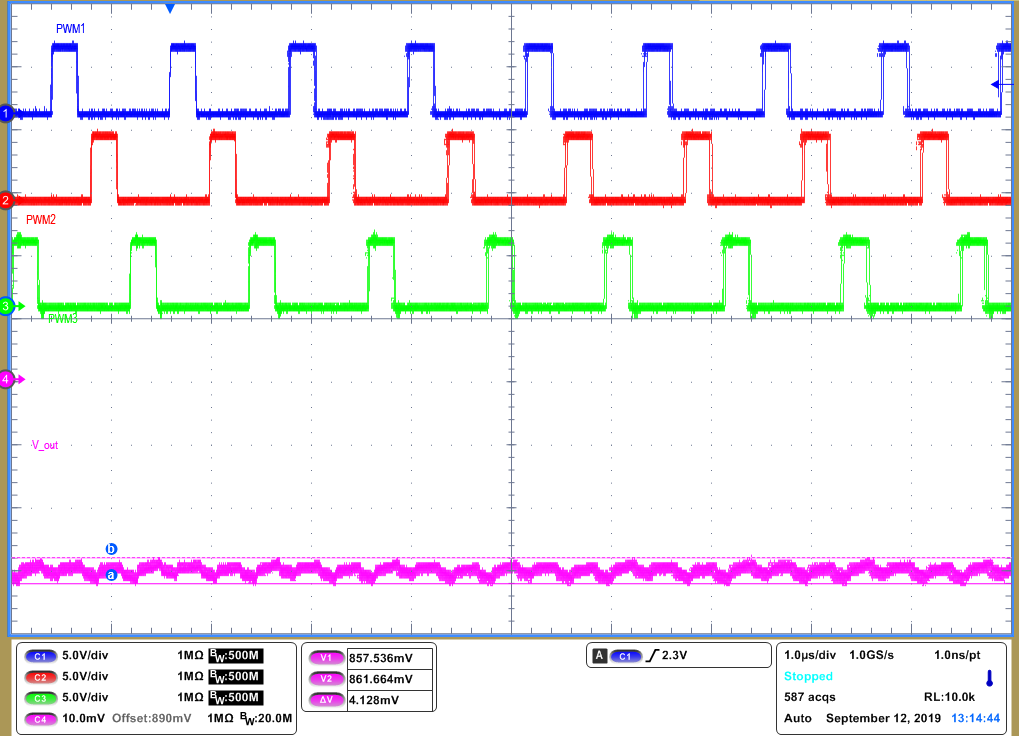

TPS59632-Q1 3phase Switching Persistence.pngFigure 3. 3-phase switching ripple at Input Voltage = 5 V, Load current = 50A, Switching Frequency = 800kHz. Persistence mode.
TPS59632-Q1 Load Transient Release.pngFigure 5. Load transient with a droop of 0.6mΩ load-line slope. Load transient = 36A to 0A. Single mode.

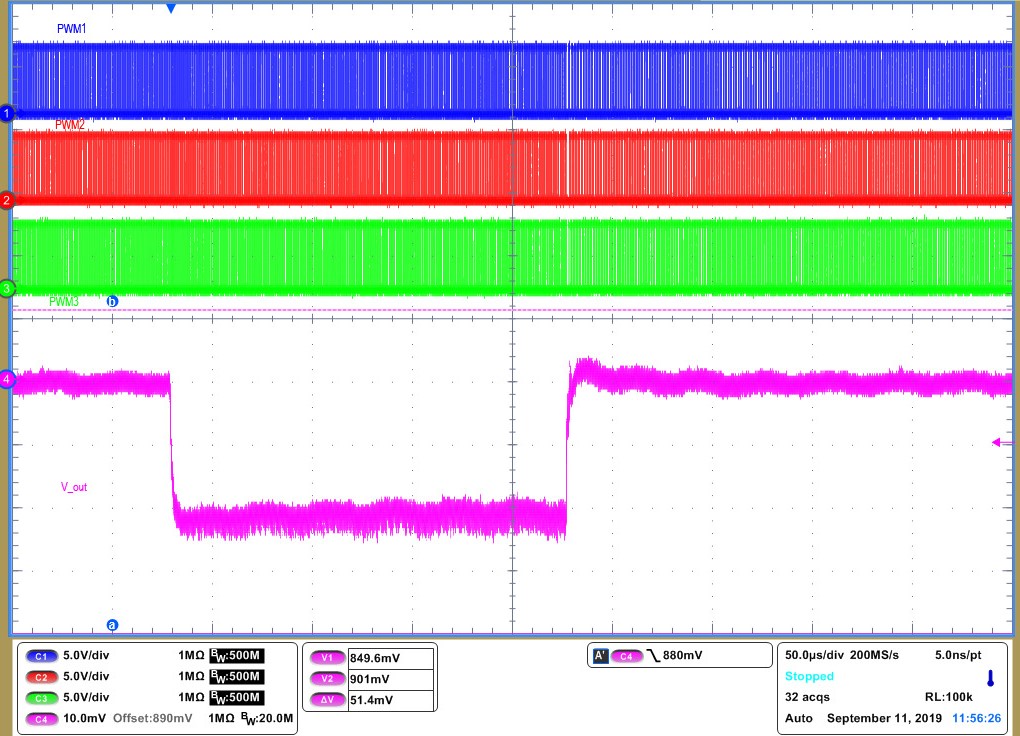

TPS59632-Q1 Load Transient 0 to 36A.jpgFigure 7. Load transient with a droop of 0.6mΩ load-line slope. Load transient = 0A to 36A. Persistence mode

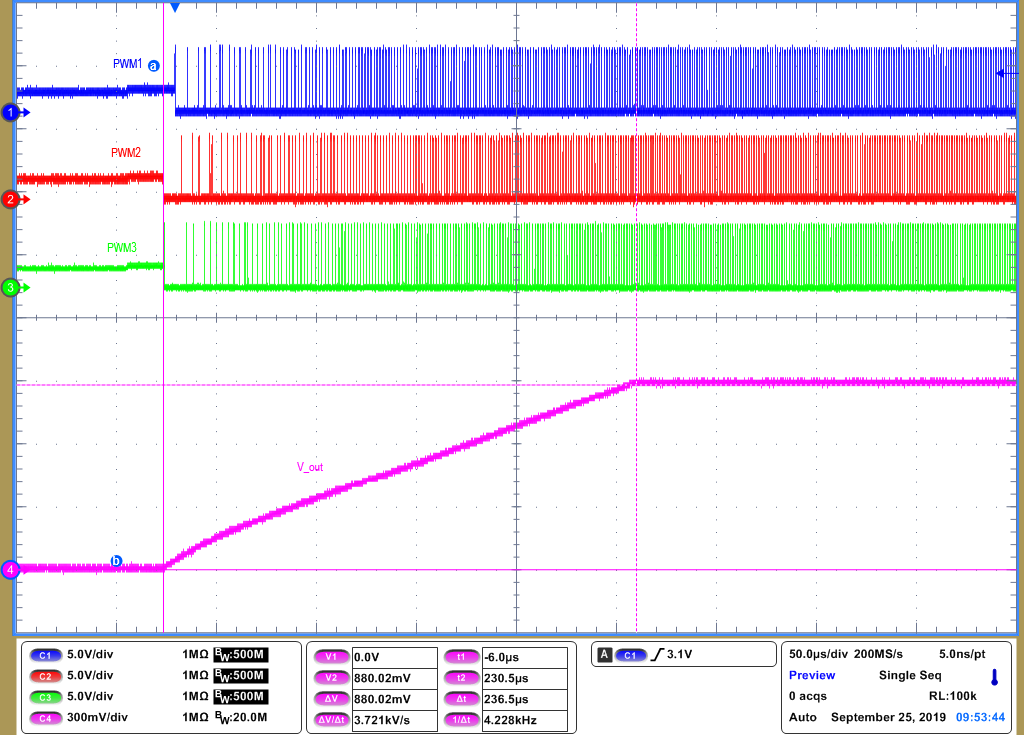

TPS59632-Q1 Startup Switching.pngFigure 2. 3-phase start up behavior showing switching at startup. Input Voltage = 5V, Load current = 10A.

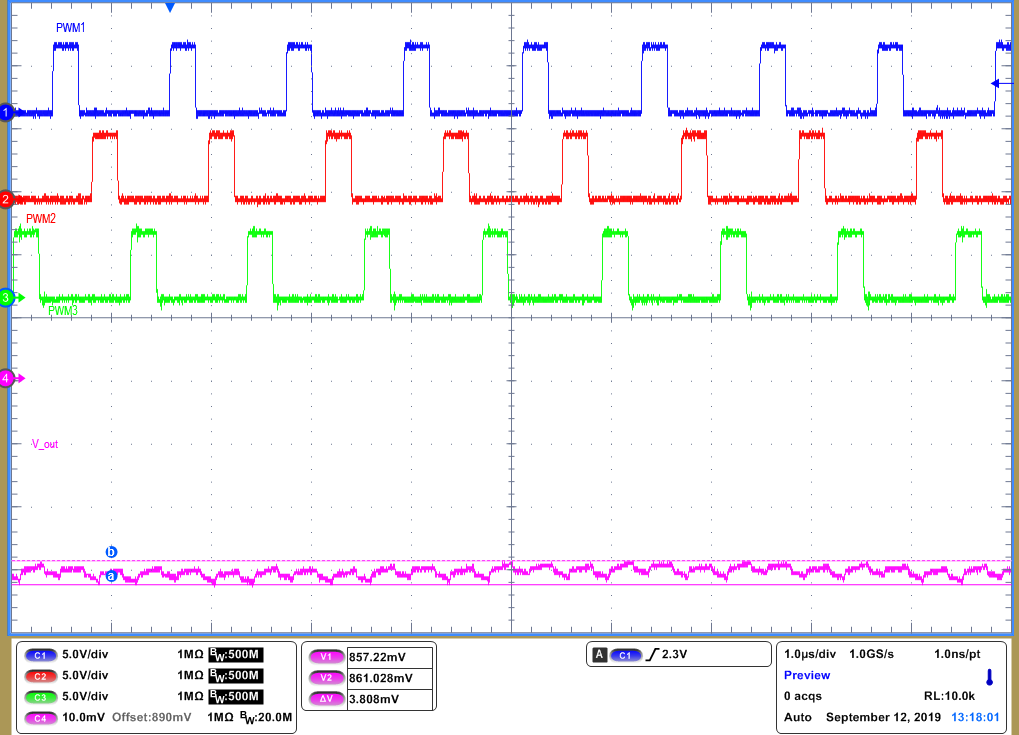

TPS59632-Q1 3phase Switching Singleshot.pngFigure 4. 3-phase switching ripple at Input Voltage = 5 V, Load current = 50A, Switching Frequency = 800kHz. Single mode.

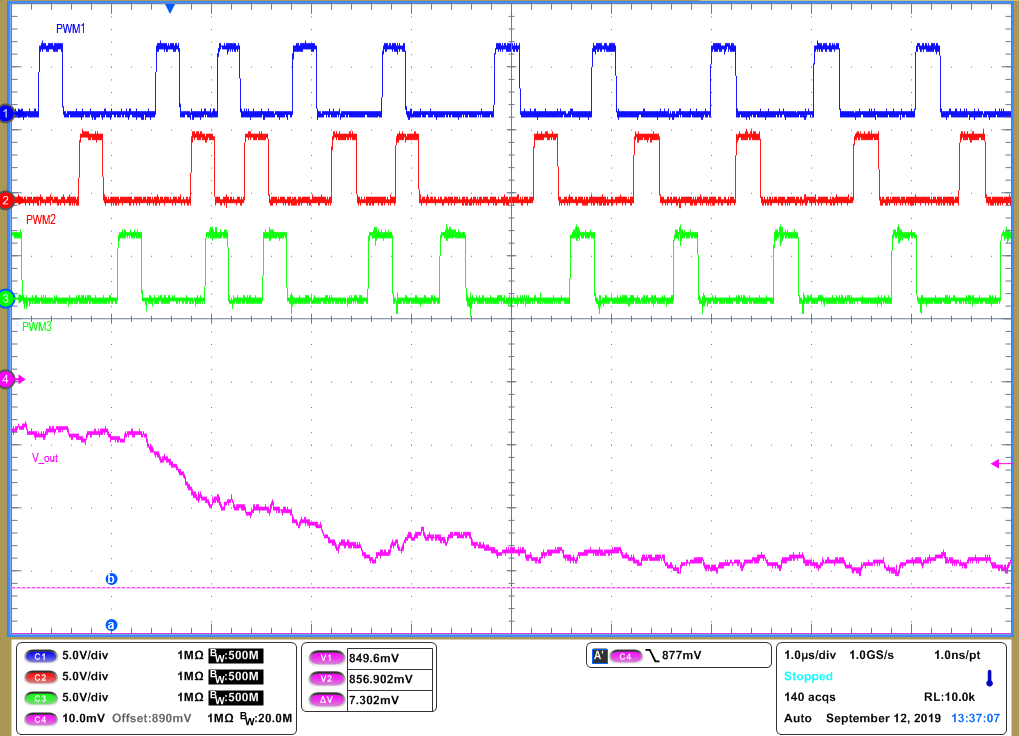

TPS59632-Q1 Load Transient Insertion.pngFigure 6. Load transient with a droop of 0.6mΩ load-line slope. Load transient = 14A to 50A. Single mode.

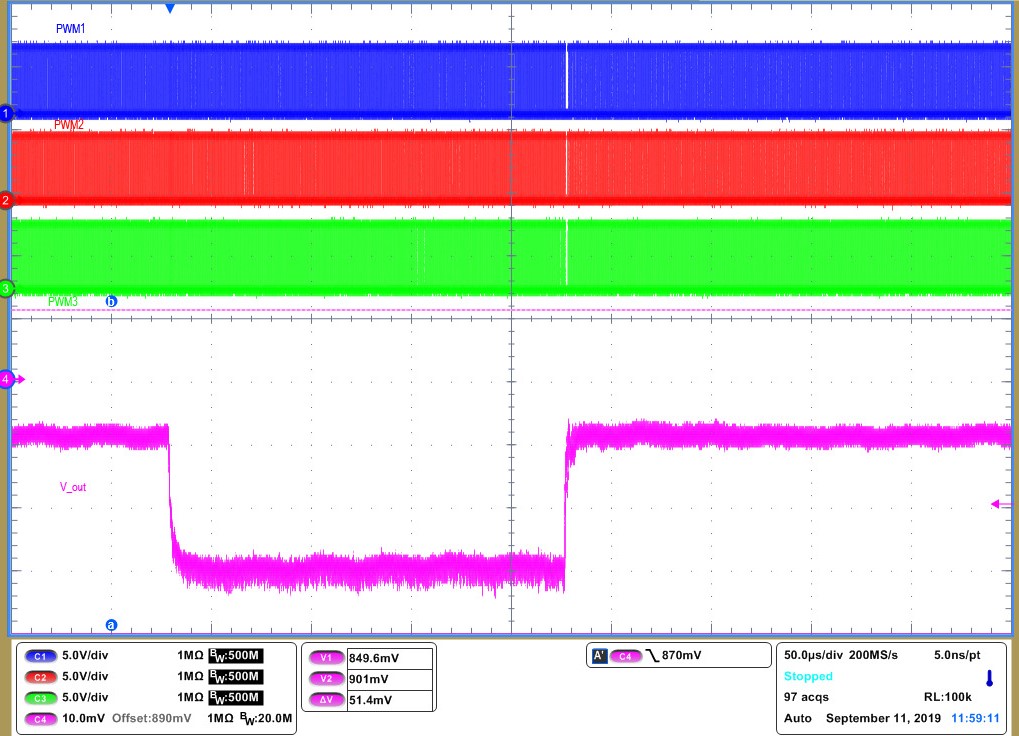

TPS59632-Q1 Load Transient 14A to 50A.jpgFigure 8. Load transient with a droop of 0.6mΩ load-line slope. Load transient = 14A to 50A. Persistence mode
