10.2.2.5.1 Case 1: Start-Up Without Load—Only Output Capacitance C(OUT) Draws Current During Start-Up

During start-up, as the output capacitor charges, the voltage difference across the internal FET decreases, and the power dissipation decreases. Typical ramp-up of the output voltage, inrush current and instantaneous power dissipated in the device during start-up are shown in Figure 51. The average power dissipated in the device during start-up is equal to the area of triangular plot (red curve in Figure 52) averaged over tdVdT.

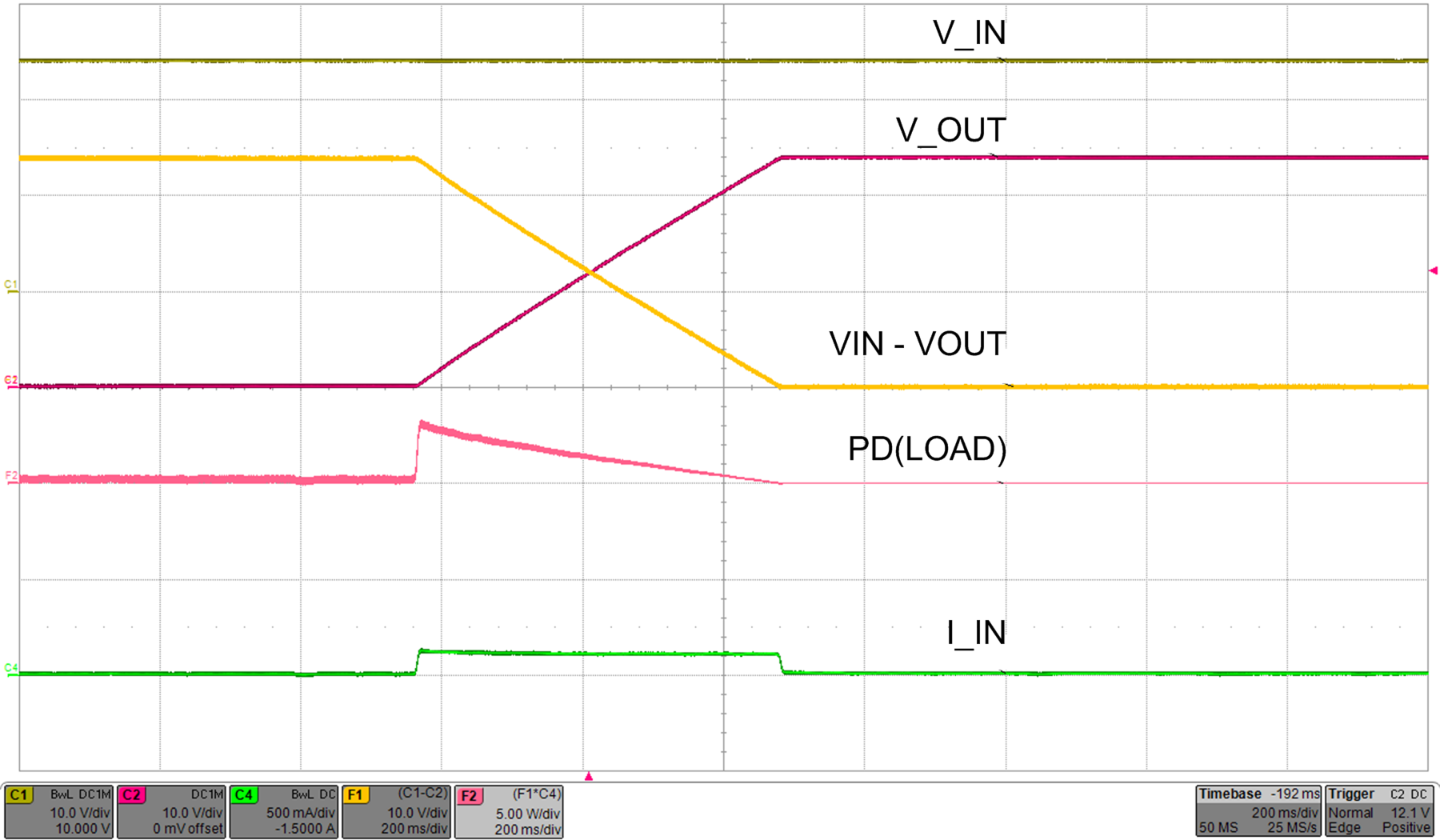

TPS2660 Pd with No Laod.png
VIN = 24 V CdVdT = 2.2 µF COUT = 2.2 mF
Figure 51. Start-Up Without Load
TPS2660 D050_SLVSDG2.gif
VIN = 24 V CdVdT = 2.2 µF COUT = 2.2 mF
Figure 52. PD(INRUSH) Due to Inrush Current

The inrush current is determined as shown in Equation 15.

Equation 15. TPS2660 Equation_7_App2.gif

Average power dissipated during start-up is given by Equation 16.

Equation 16. TPS2660 Equation_8_App.gif

Equation 16 assumes that the load does not draw any current until the output voltage reaches its final value.
