9.3.5.1.2 Electronic Circuit Breaker with Overload Timeout, MODE = OPEN

In this mode, during overload events, the device allows the overload current to flow through the device until I(LOAD) < I(FASTRIP). The circuit breaker threshold I(CB) can be programmed using the R(ILIM) resistor as shown in Equation 4.

Equation 4. TPS2660 equ_09_SLVSDG2.gif

where

  • I(CB) is circuit breaker current threshold in Ampere
  • R(ILIM) is the current limit resistor in kΩ

An internal timer starts when I(CB) < ILOAD < IFASTRIP, and when the timer exceeds tCB(dly), the device turns OFF the internal FET and FLT is asserted. Once the internal FET is turned off, the device configured in latch-off mode stays latched off, until it is reset by either of the following conditions:

  • Cycling V(IN) falling below V(PORF)
  • Toggling SHDN

whereas the device configured in auto-retry mode, commences an auto-retry cycle after 540 ms. The FLT signal remains asserted until the fault condition is removed and the device resumes normal operation. Figure 41 and Figure 42 illustrate behavior of the system during electronic circuit breaker with auto-retry functionality.

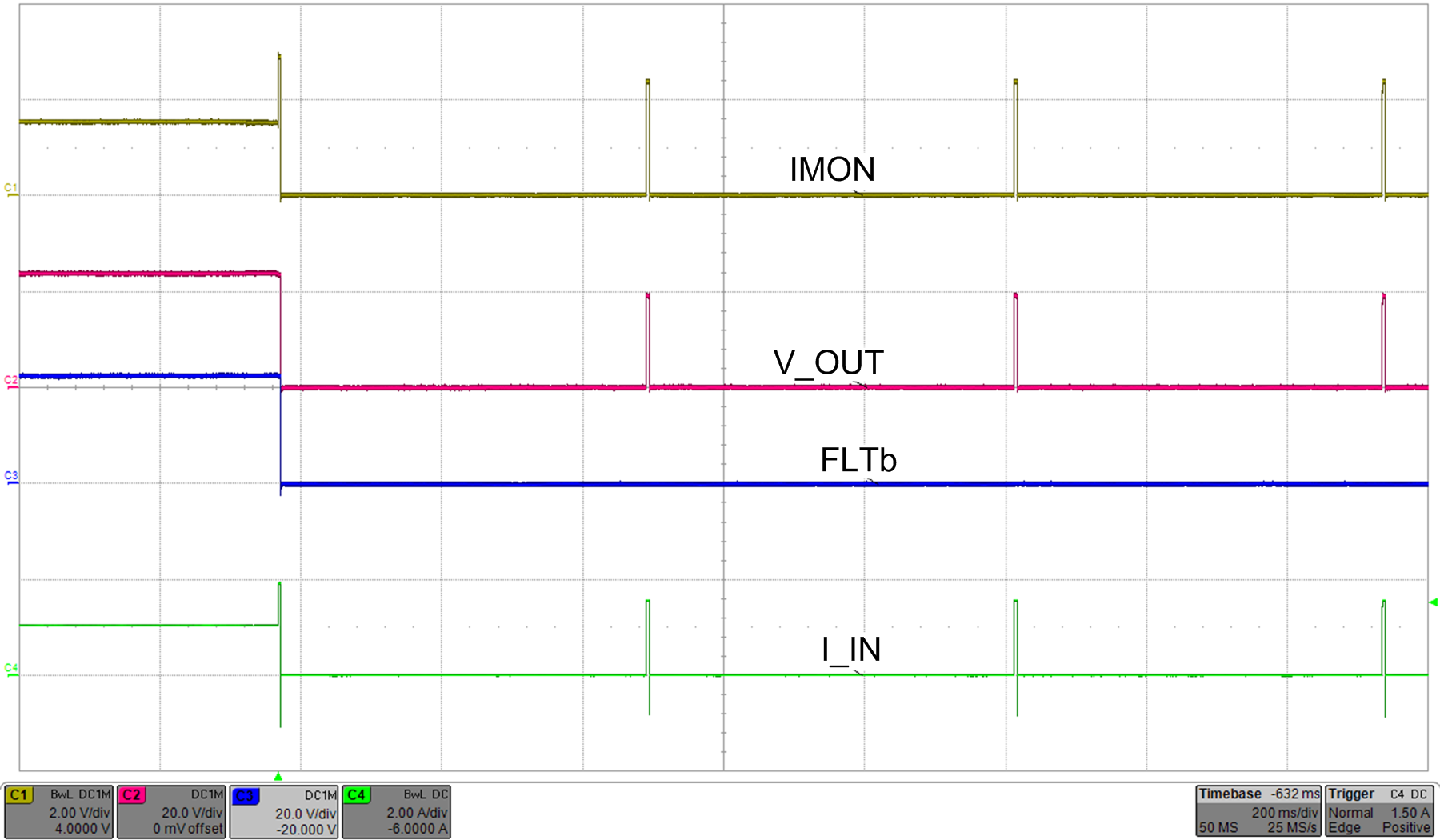

TPS2660 scope_shot_03_slvsdg2.png
MODE left floating Load Transition from 22 Ω to 12 Ω
RILIM = 8 kΩ
Figure 41. Circuit Breaker Functionality

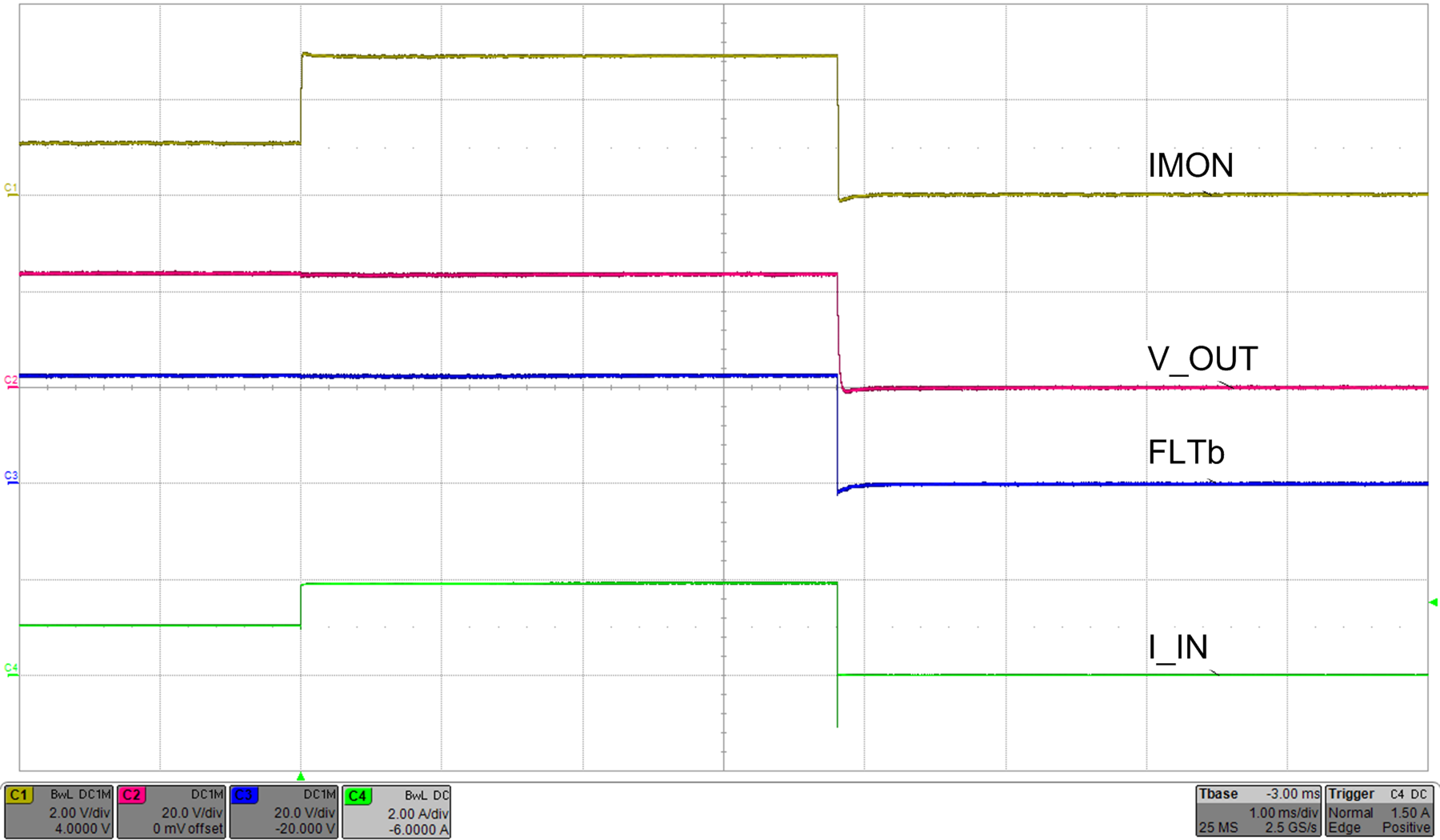

TPS2660 scope_shot_04_slvsdg2.png
Load Transition from 22 Ω to 12 Ω , RILIM = 8 kΩ
Figure 42. Zoomed at the Instance of Load Step
