9.3.5.1.1 Active Current Limiting

When the active current limiting mode is selected, during overload events, the device continuously regulates the load current to the overcurrent limit I(OL) programmed by the R(ILIM) resistor as shown in Equation 3.

Equation 3. TPS2660 equ_04_SLVSDG2.gif

where

  • I(OL) is the overload current limit in Ampere
  • R(ILIM) is the current limit resistor in kΩ

During an overload condition, the internal current-limit amplifier regulates the output current to I(LIM). The FLT signal assert after a delay of 875 µs.The output voltage droops during the current regulation, resulting in increased power dissipation in the device. If the device junction temperature reaches the thermal shutdown threshold (T(TSD)), the internal FET is turn off. The device configured in latch-off mode stays latched off until it is reset by either of the following conditions:

  • Cycling V(IN) below V(PORF)
  • Toggling SHDN

Whereas the device configured in auto-retry mode, commences an auto-retry cycle 512 ms after TJ < [T(TSD) – 10°C]. The FLT signal remains asserted until the fault condition is removed and the device resumes normal operation. Figure 39 and Figure 40 illustrates behavior of the system during current limiting with auto-retry functionality.

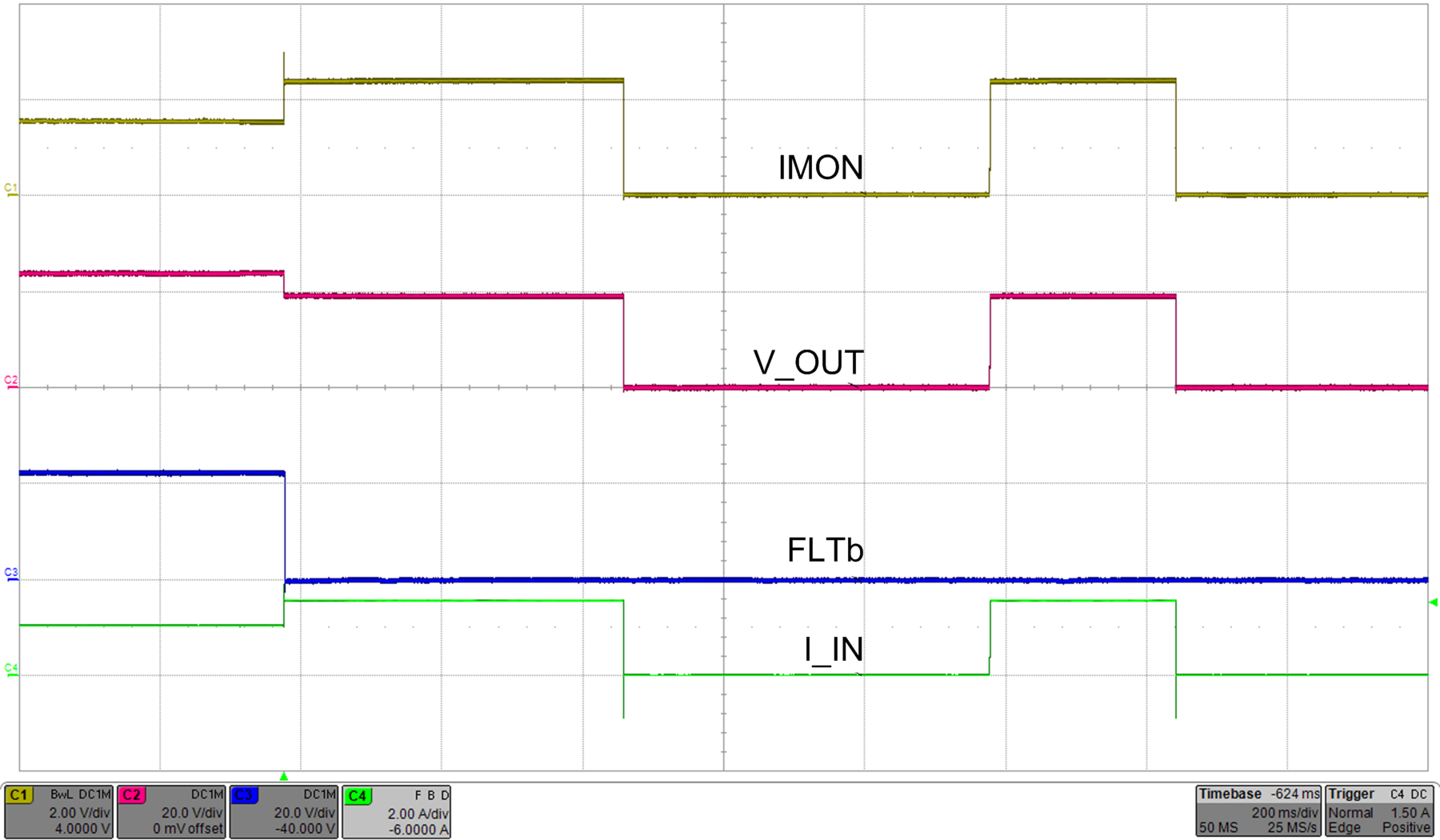

TPS2660 scope_shot_01_slvsdg2.png
Load transition from 22 Ω to 12 Ω MODE pin connected to RTN
RILIM = 8 kΩ
Figure 39. Auto-Retry MODE Fault Behavior

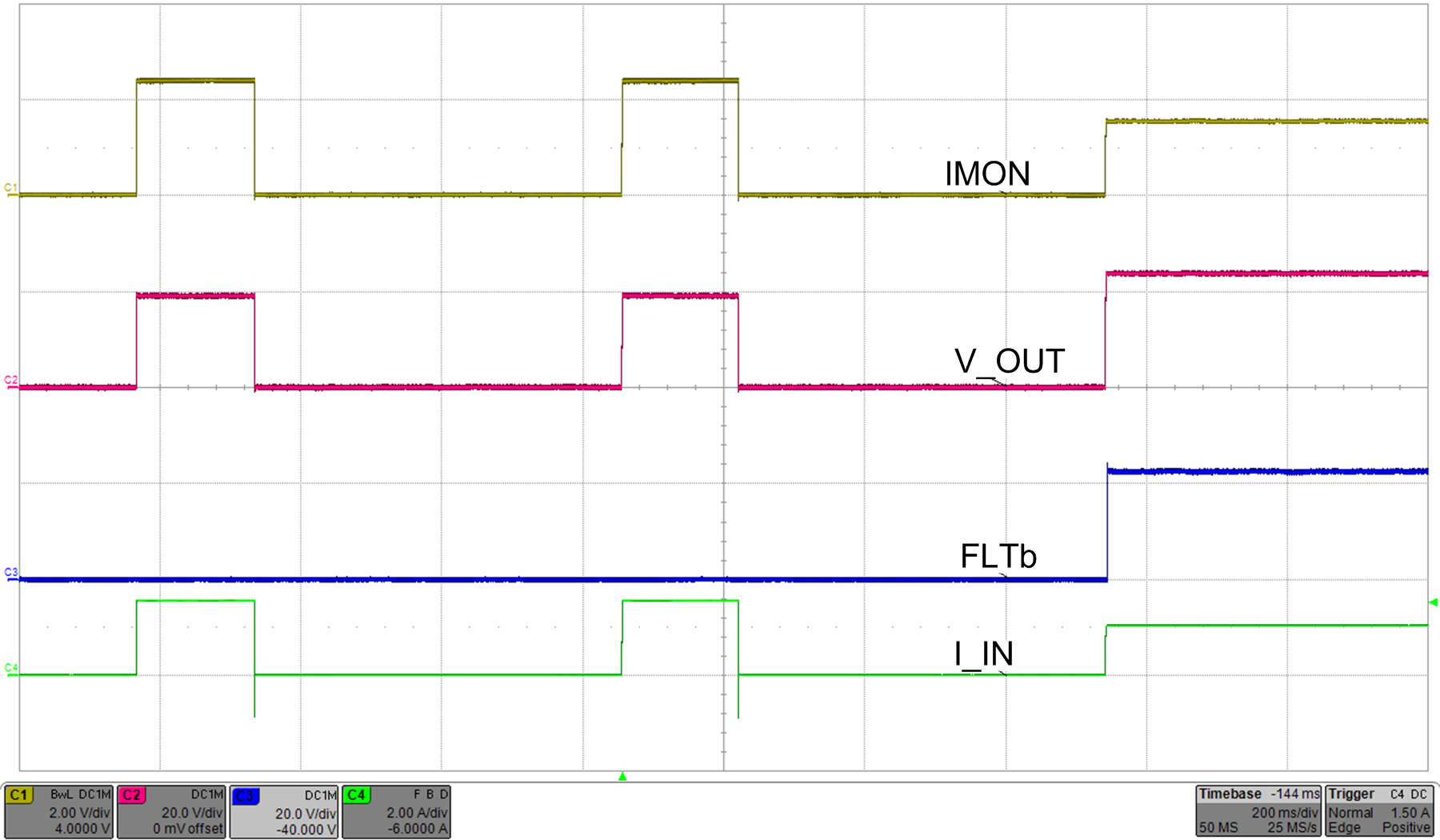

TPS2660 scope_shot_02_slvsdg2.png
RILIM = 5.36 kΩ
Figure 40. Response During Coming Out of Overload Fault
