Hot Plug-In and In-Rush Current Control

The devices are designed to control the in-rush current upon insertion of a card into a live backplane or other "hot" power source. This limits the voltage sag on the backplane’s supply voltage and prevents unintended resets of the system power. The controlled start-up also helps to eliminate conductive and radiative interferences. An external capacitor connected from the dVdT pin to RTN defines the slew rate of the output voltage at power-on as shown in Figure 37 and Figure 38.

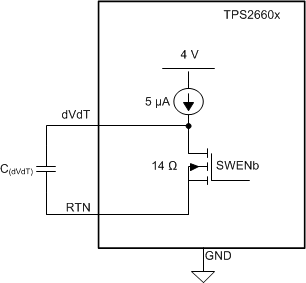

TPS2660 Cdvdt_Diagram.gifFigure 37. Output Ramp Up Time tdVdT is Set by C(dVdT)

The dVdT pin can be left floating to obtain a predetermined slew rate (tdVdT) on the output. When the terminal is left floating, the devices set an internal output voltage ramp rate of 23.9 V/1.6 ms. A capacitor can be connected from dVdT pin to RTN to program the output voltage slew rate slower than 23.9 V/1.6 ms. Use Equation 1 and Equation 2 to calculate the external C(dVdT) capacitance.

Equation 1 governs slew rate at start-up.

Equation 1. TPS2660 equ_01_SLVSDG2.gif

where

  • I(dVdT) = 4.7 µA (typical)
  • TPS2660 equ_02_SLVSDG2.gif
  • Gain(dVdT) = dVdT to VOUT gain = 24.6

The total ramp time (tdVdT) of V(OUT) for 0 to V(IN) can be calculated using Equation 2.

Equation 2. tdVdT = 8 × 103 × V(IN) × C(dVdT)
TPS2660 scope_shot_05_slvsdg2.png
CdVdT = 22 nF COUT = 47 µF RILIM = 5.36 kΩ
Figure 38. Hot Plug-In and In-Rush Current Control at 24-V Input
