6.4 Typical Characteristics

At VS = 5 V, unless otherwise noted.

Figure 6-1 Quiescent Current Over Temperature and Supply
Figure 6-3 RSET vs Temperature

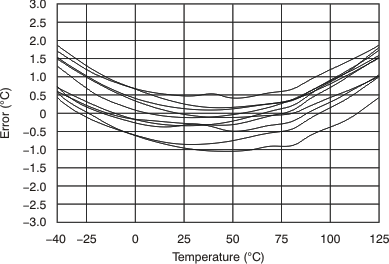

Figure 6-5 Typical Analog Output Error
Figure 6-7 Trip PSR Over Temperature
Figure 6-2 RSET Shift Resulting From RSET Tolerance
Figure 6-4 Typical Trip Error

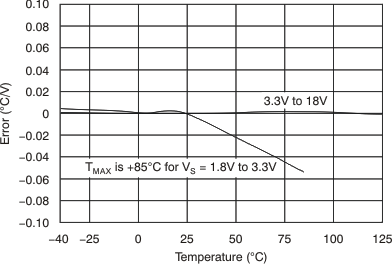

Figure 6-6 Analog PSR Over Temperature
