7.2.2 Using VTEMP to Trip the Digital Output

The analog voltage output can also serve as a voltage input that forces a trip of the digital output to simulate a thermal event. This simulation facilitates easy system design and test of thermal safety circuits, as shown in Figure 7-1.

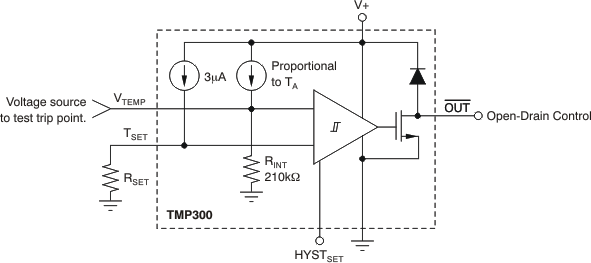

GUID-4A0061D0-1511-4035-ABFD-18CFC599ACC7-low.gifFigure 7-1 Applying Voltage to Trip Digital Output
