5.9 Typical Characteristics, TCAN330 Driver

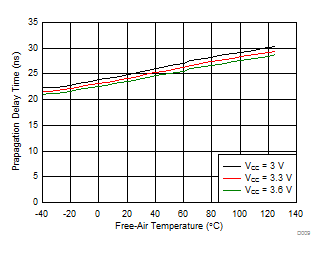

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Driver High TXD Input to Driver Recessive Output Propagation Delay Time vs Free-Air Temperature
Figure 5-11 Driver High TXD Input to Driver Recessive Output Propagation Delay Time vs Free-Air Temperature

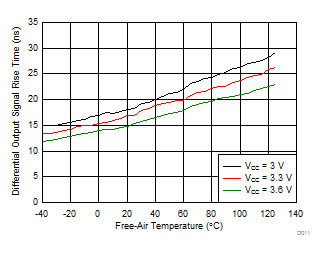

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Differential Output Signal Rise Time vs Free-Air Temperature
Figure 5-13 Differential Output Signal Rise Time vs Free-Air Temperature

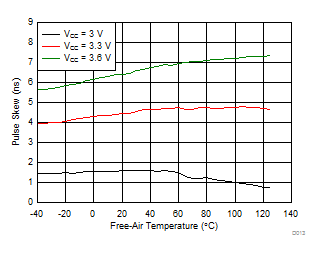

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Pulse Skew (|tpHR - tpLD|) vs Free-Air Temperature
Figure 5-15 Pulse Skew (|tpHR - tpLD|) vs Free-Air Temperature

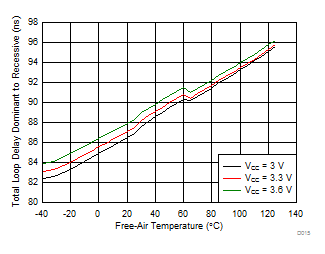

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Total Loop Delay Dominant to Recessive tPROP(LOOP2) vs Free-Air Temperature
Figure 5-17 Total Loop Delay Dominant to Recessive tPROP(LOOP2) vs Free-Air Temperature

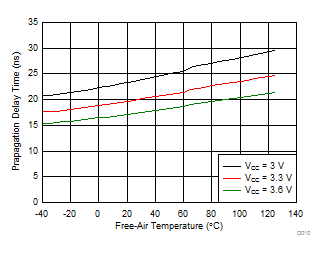

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Driver Low TXD Input to Driver Dominant Output Propagation Delay Time vs Free-Air Temperature
Figure 5-12 Driver Low TXD Input to Driver Dominant Output Propagation Delay Time vs Free-Air Temperature

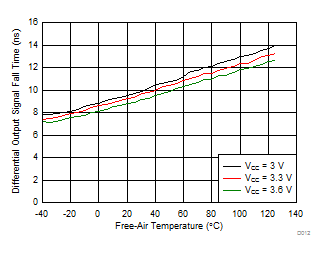

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Differential Output Signal Fall Time vs Free-Air Temperature
Figure 5-14 Differential Output Signal Fall Time vs Free-Air Temperature

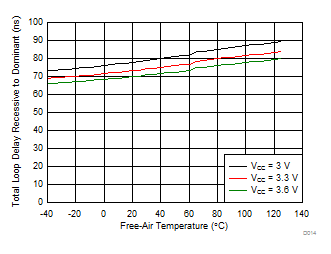

TCAN330 TCAN332 TCAN334 TCAN337 TCAN330G TCAN332G TCAN334G TCAN337G Total Loop Delay Recessive to Dominant tPROP(LOOP1) vs Free-Air Temperature
Figure 5-16 Total Loop Delay Recessive to Dominant tPROP(LOOP1) vs Free-Air Temperature
