封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • DKQ|56
散热焊盘机械数据 (封装 | 引脚)
订购信息

3 说明

TAS6424E-Q1 器件是一款采用 2.1MHz PWM 开关频率的四通道数字输入 D 类音频放大器，以非常小的 PCB 尺寸实现成本优化的解决方案，可针对启停事件在低至 4.5V 的电压下全面运行，并可在高达 40kHz 的音频带宽下提供出色的音质。

输出开关频率既可以设置为高于调幅 (AM) 频带，以消除 AM 频带干扰并降低输出滤波需求及成本；也可以设置为低于 AM 频带，以优化器件效率。

该器件具有内置负载诊断功能，用于检测和诊断误接的输出，以及检测交流耦合的高频扬声器，以帮助缩短制造过程中的测试时间。

器件增加了 EMI 管理特性（包括展频、输出相位偏移和优化的压摆率），以帮助应对系统级 EMI 挑战。

TAS6424E-Q1 D 类音频放大器专为汽车音响主机和外部放大器模块而设计。有关引脚兼容的单通道、双通道及四通道器件，请参阅器件选项表。

器件信息
器件型号封装(1)封装尺寸（标称值）
TAS6424E-Q1HSSOP (56)18.41mm × 7.49mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

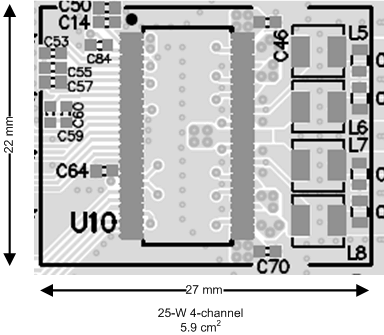

GUID-CC5DDE7C-2AAE-4977-922A-BD20C9356932-low.gifPCB 区域
