Parameter Measurement Information

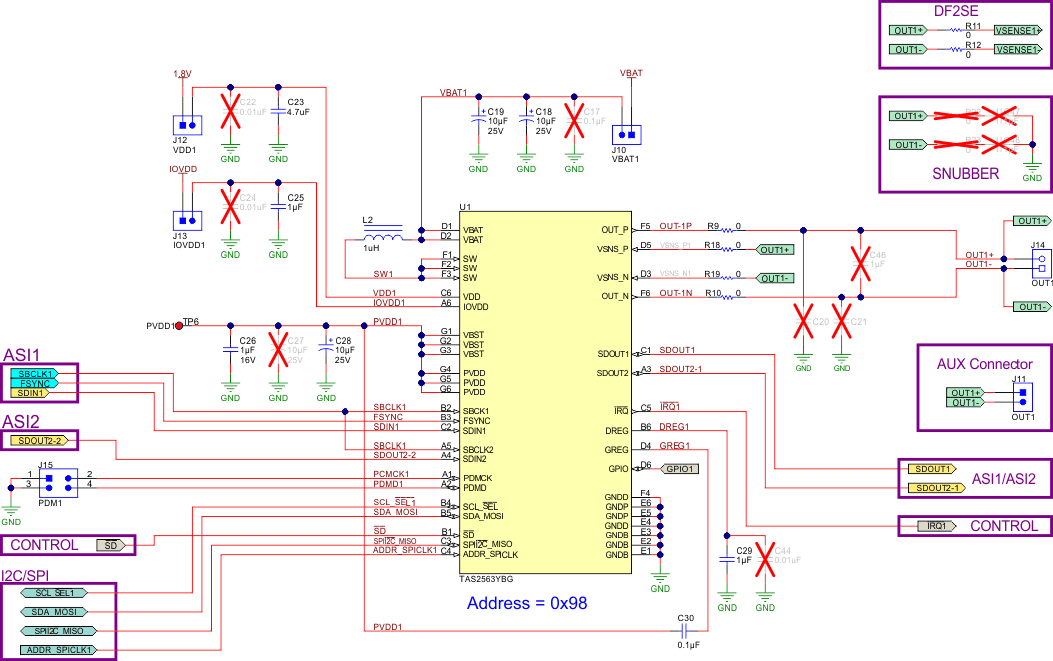

GUID-A9C24B14-786B-47CE-92F8-73FE679C74F6-low.gif Figure 6-1 TAS2563 Circuit

All typical characteristics for the devices are measured using the Bench EVM and an Audio Precision SYS-2722 Audio Analyzer. A PSIA interface is used to allow the I2S interface to be driven directly into the SYS-2722. Speaker output terminals are connected to the Audio-Precision analyzer analog inputs through a differential-to-single ended (D2S) filter as shown below. The D2S filter contains a 1st order Passive pole at 120 kHz. The D2S filter ensures the TAS2563 high performance class-D amplifier sees a fully differential matched loading at its outputs. This prevents measurement errors due to loading effects of AUX-0025 filter on the class-D outputs.

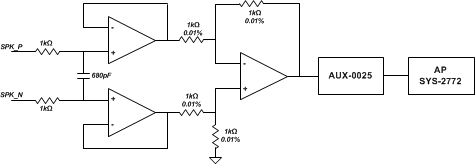

GUID-994C84C7-3F5F-41F9-9860-E58C81E7D96B-low.gif Figure 6-2 Differential To Single Ended (D2S) Filter
