8.4 Active Mode Supply Current (Into VCC) Excluding External Current

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)(2)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
IAM, 1.024MHz Active mode current at 1.024 MHz fDCO = 16.384 MHz, fMCLK = fSMCLK = 1.024 MHz,
fACLK = 32 kHz,
Program executes from flash,
CPUOFF = 0, SCG0 = 0, SCG1 = 0, OSCOFF = 0		 3 V 1.6 mA
IAM, 8.192MHz Active mode current at 8.192 MHz fDCO = 16.384 MHz, fMCLK = fSMCLK = 8.192 MHz,
fACLK = 32 kHz,
Program executes from flash,
CPUOFF = 0, SCG0 = 0, SCG1 = 0, OSCOFF = 0		 3 V 3.0 mA
IAM, 16.384MHz Active mode current at 16.384 MHz fDCO = fMCLK = fSMCLK = 16.384 MHz,
fACLK = 32 kHz,
Program executes from flash,
CPUOFF = 0, SCG0 = 0, SCG1 = 0, OSCOFF = 0		 3 V 4.5 mA
(1) All inputs are tied to 0 V or VCC. Outputs do not source or sink any current.
(2) All peripherals are inactive.
GUID-15A53F0D-906B-4C68-9812-198759F6EBFF-low.gifFigure 8-2 Active Mode Current vs Supply Voltage

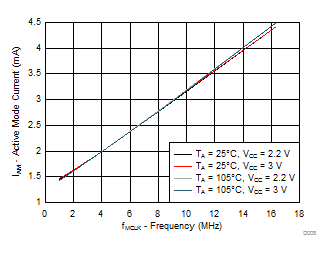

GUID-9A35290B-703A-43FA-AD0C-BBAF19AAA20A-low.gifFigure 8-3 Active Mode Current vs MCLK Frequency
