5.10 Typical Characteristics, Low-Power Mode Supply Currents

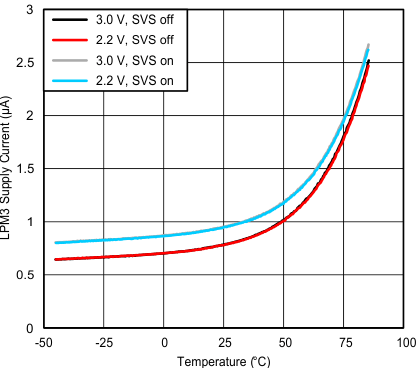

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 C001_lpm3_slas789.gifFigure 5-2 LPM3 Supply Current (ILPM3,XT3.7) vs Temperature

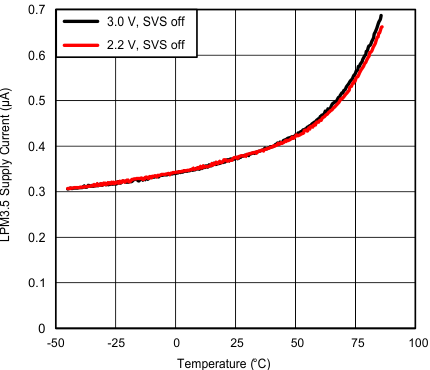

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 C003_lpm35_slas789.gifFigure 5-4 LPM3.5 Supply Current (ILPM3.5,XT3.7) vs Temperature

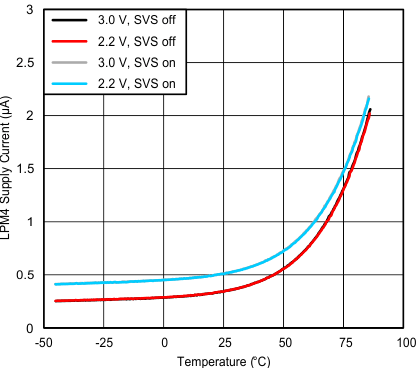

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 C002_lpm4_slas789.gifFigure 5-3 LPM4 Supply Current (ILPM4,SVS) vs Temperature

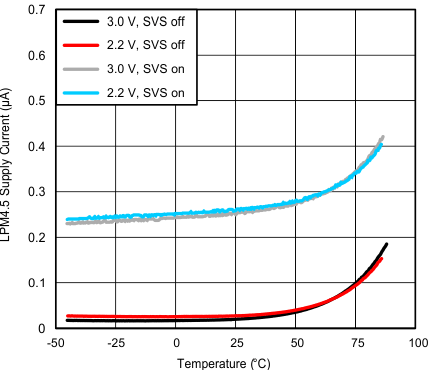

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 C004_lpm45_slas789.gifFigure 5-5 LPM4.5 Supply Current (ILPM4.5) vs Temperature
