6.14.15 Port P7 (P7.6 and P7.7) Input/Output With Schmitt Trigger

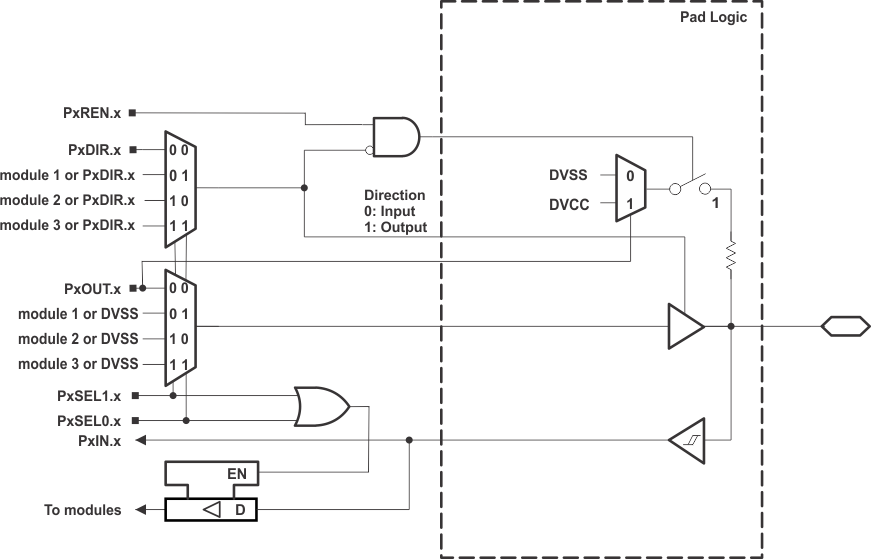

Figure 6-16 shows the port diagram. Table 6-38 summarizes the selection of the pin function.

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 IO_schem_digital.gif

NOTE:

Functional representation only.
Figure 6-16 Port P7 (P7.6 and P7.7) Diagram

Table 6-38 Port P7 (P7.6 to P7.7) Pin Functions

PIN NAME (P7.x) x FUNCTION CONTROL BITS OR SIGNALS
P7DIR.x P7SEL1.x P7SEL0.x
P7.6/TA4.1/DMAE0/COUT 6 P7.6(I/O) I: 0; O: 1 0 0
TA4.CCI1A 0 0 1
TA4.1 1
DMAE0 0 1 0
Internally tied to DVSS 1
N/A 0 1 1
COUT 1
P7.7/TA0.2/TB0OUTH/COUT 7 P7.7(I/O) I: 0; O: 1 0 0
TA0.CCI2A 0 0 1
TA0.2 1
TB0OUTH 0 1 0
Internally tied to DVSS 1
N/A 0 1 1
COUT 1
