6.14.19 Port PJ (PJ.0 to PJ.3) JTAG Pins TDO, TMS, TCK, TDI/TCLK, Input/Output With Schmitt Trigger

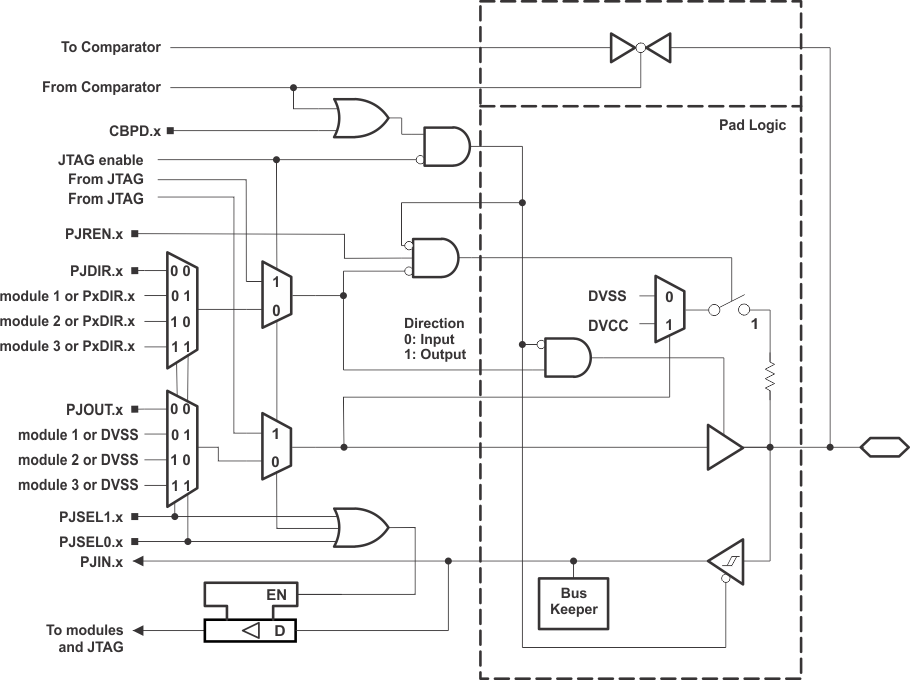

Figure 6-20 shows the port diagram. Table 6-42 summarizes the selection of the pin function.

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 IO_schem_pj_0123.gif

NOTE:

Functional representation only.
Figure 6-20 Port PJ (PJ.0 to PJ.3) Diagram

Table 6-42 Port PJ (PJ.0 to PJ.3) Pin Functions

PIN NAME (PJ.x) x FUNCTION CONTROL BITS/ SIGNALS(1)
PJDIR.x PJSEL1.x PJSEL0.x CEPDx (Cx)
PJ.0/TDO/ACLK/SRSCG1/DMAE0/C10 0 PJ.0 (I/O)(2) I: 0; O: 1 0 0 0
TDO(3) X X X 0
N/A 0 0 1 0
ACLK 1
N/A 0 1 0 0
CPU Status Register Bit SCG1 1
DMAE0 0 1 1 0
Internally tied to DVSS 1
C10(5) X X X 1
PJ.1/TDI/TCLK/SMCLK/SRSCG0/TA4CLK/C11 1 PJ.1 (I/O)(2) I: 0; O: 1 0 0 0
TDI/TCLK(3)(4) X X X 0
N/A 0 0 1 0
SMCLK 1
N/A 0 1 0 0
CPU Status Register Bit SCG0 1
TA4CLK 0 1 1 0
Internally tied to DVSS 1
C11(5) X X X 1
PJ.2/TMS/MCLK/SROSCOFF/TB0OUTH/C12 2 PJ.2 (I/O)(2) I: 0; O: 1 0 0 0
TMS(3)(4) X X X 0
N/A 0 0 1 0
MCLK 1
N/A 0 1 0 0
CPU Status Register Bit OSCOFF 1
TB0OUTH 0 1 1 0
Internally tied to DVSS 1
C12(5) X X X 1
PJ.3/TCK/RTCCLK/SRCPUOFF/TB0.6/C13 3 PJ.3 (I/O)(2) I: 0; O: 1 0 0 0
TCK(3)(4) X X X 0
N/A 0 0 1 0
RTCCLK 1
N/A 0 1 0 0
CPU Status Register Bit CPUOFF 1
TB0.CCI6A 0 1 1 0
TB0.6 1
C13(5) X X X 1
(1) X = Don't care
(2) Default condition
(3) The pin direction is controlled by the JTAG module. JTAG mode selection is made through the SYS module or by the Spy-Bi-Wire four-wire entry sequence. Neither PJSEL1.x and PJSEL0.x nor CEPDx bits have an effect in these cases.
(4) In JTAG mode, pullups are activated automatically on TMS, TCK, and TDI/TCLK. PJREN.x are don't care.
