6.14.17 Port P8 (P8.4 to P8.7) Input/Output With Schmitt Trigger

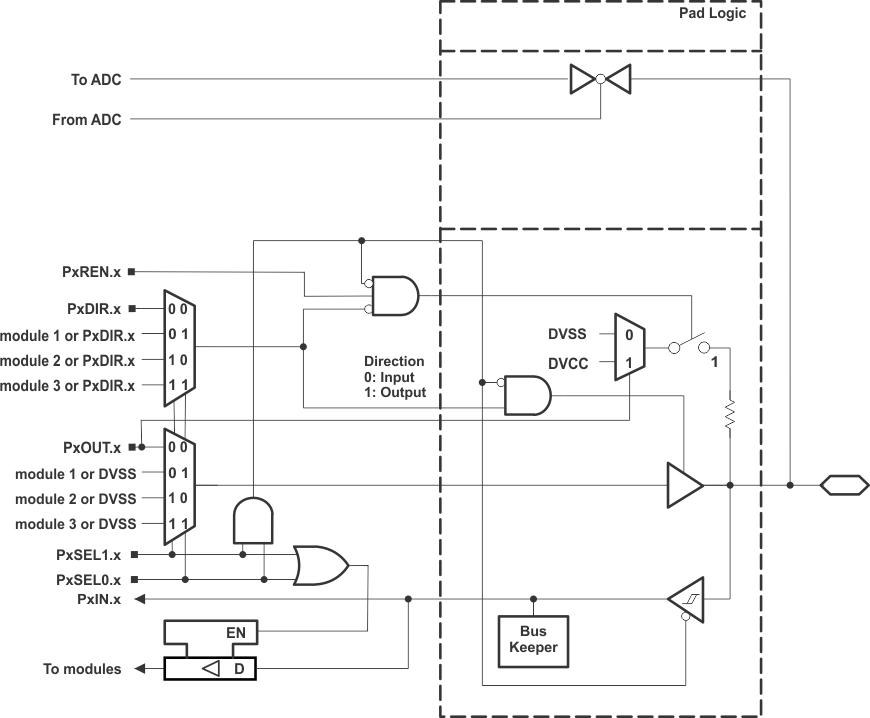

Figure 6-18 shows the port diagram. Table 6-40 summarizes the selection of the pin function.

MSP430FR6047 MSP430FR60471 MSP430FR6045 MSP430FR6037 MSP430FR60371 MSP430FR6035 IO_schem_digital_adc.gif

NOTE:

Functional representation only.
Figure 6-18 Port P8 (P8.4 to P8.7) Diagram

Table 6-40 Port P8 (P8.4 to P8.7) Pin Functions

PIN NAME (P8.x) x FUNCTION CONTROL BITS OR SIGNALS
P8DIR.x P8SEL1.x P8SEL0.x
P8.4/UCB1CLK/TA1.2/A10 4 P8.4(I/O) I: 0; O: 1 0 0
UCB1CLK X(1) 0 1
TA1.CCI2A 0 1 0
TA1.2 1
A10(2) X 1 1
P8.5/UCB1SIMO/UCB1SDA/A11 5 P8.5(I/O) I: 0; O: 1 0 0
UCB1SIMO/UCB1SDA X(1) 0 1
N/A 0 1 0
Internally tied to DVSS 1
A11(2) X 1 1
P8.6/UCB1SOMI/UCB1SCL/A12 6 P8.6(I/O) I: 0; O: 1 0 0
UCB1SOMI/UCB1SCL X(1) 0 1
N/A 0 1 0
Internally tied to DVSS 1
A12(2) X 1 1
P8.7/UCB1STE/USSXT_BOUT/A13 7 P8.7(I/O) I: 0; O: 1 0 0
UCB1STE X(1) 0 1
N/A 0 1 0
USSXT_BOUT(3) 1
A13(2) X 1 1
(1) Direction controlled by eUSCI_B1 module.
(2) Setting P8SEL1.x and P8SEL0.x disables the output driver and the input Schmitt trigger to prevent parasitic cross currents when applying analog signals.
(3) USSXTHSPLL.PLLXTLCTL.XTOUTOFF bit must also be set to 0.
