9.13.7 Port P5 (P5.3 to P5.5, P5.7) Input/Output With Schmitt Trigger

Figure 9-9 shows the port diagram. Table 9-22 summarizes the selection of the port function.

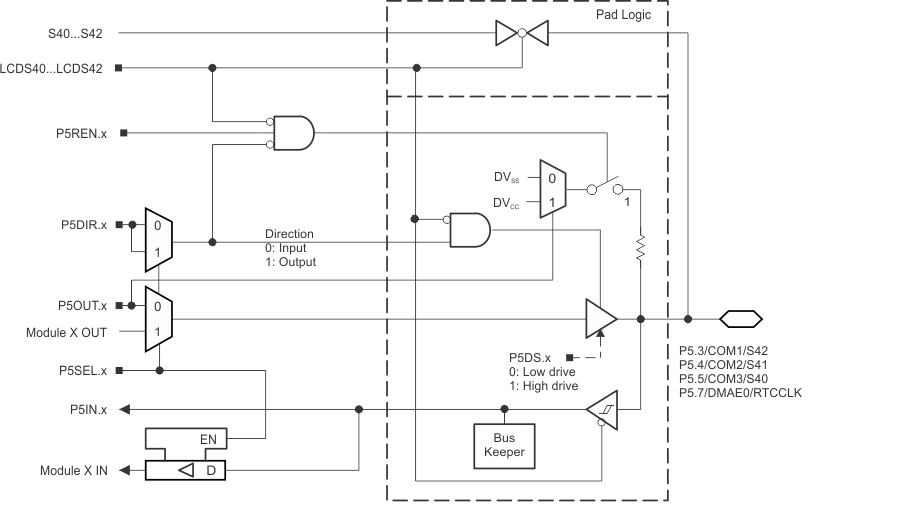

GUID-819780A3-2E9C-4FC6-81B5-9076811FECC4-low.gifFigure 9-9 Port P5 (P5.3 to P5.5 and P5.7) Diagram
Table 9-22 Port P5 (P5.3 to P5.5, P5.7) Pin Functions
PIN NAME (P5.x)xFUNCTIONCONTROL BITS OR SIGNALS(1)
P5DIR.xP5SEL.xLCDS40 to LCDS42
P5.3/COM1/S423P5.3 (I/O)I: 0; O: 100
COM1X1X
S42X01
P5.4/COM2/S414P5.4 (I/O)I: 0; O: 100
COM2X1X
S41X01
P5.5/COM3/S405P5.5 (I/O)I: 0; O: 100
COM3X1X
S40X01
P5.7/DMAE0/RTCCLK7P5.7 (I/O)I: 0; O: 10na
DMAE001na
RTCCLK11na
