8.8.17.1 Ports PU.0 and PU.1

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETERTEST CONDITIONSMINMAXUNIT
VOHHigh-level output voltage (see Figure 8-31)VUSB = 3.3 V ±10%, IOH = –25 mA2.4V
VOLLow-level output voltage (see Figure 8-30)VUSB = 3.3 V ±10%, IOL = 25 mA0.4V
VIHHigh-level input voltage (see Figure 8-32)VUSB = 3.3 V ±10%2.0V
VILLow-level input voltage (see Figure 8-32)VUSB = 3.3 V ±10%0.8V

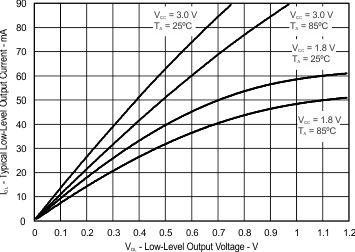

GUID-EC802F5F-3ADE-45C4-8829-2A81E219D737-low.gifFigure 8-30 Ports PU.0, PU.1 Typical Low-Level Output Characteristics
GUID-A9DF2670-45EE-42BA-9252-55F404380C07-low.gifFigure 8-31 Ports PU.0, PU.1 Typical High-Level Output Characteristics
GUID-9B42C85F-76DE-4369-89AB-3F46D06620F8-low.gifFigure 8-32 Ports PU.0, PU.1 Typical Input Threshold Characteristics

Section 8.8.17.2 and Section 8.8.17.3 list the characteristics of the DP and DM ports.
