8.8.13.1 12-Bit DAC, Supply Specifications

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETERTEST CONDITIONSVCCMINTYPMAXUNIT
AVCCAnalog supply voltageAVCC = DVCC, AVSS = DVSS = 0 V2.23.6V
IDDSupply current, single DAC channel(1) (2)DAC12AMPx = 2, DAC12IR = 0,
DAC12OG = 1,
DAC12_xDAT  =  0800h,
VeREF+  =  VREFBG  = 1.16 V		3 V65110µA
DAC12AMPx = 2, DAC12IR = 1,
DAC12_xDAT  =  0800h,
VeREF+ =  AVCC		2.2 V to 3.6 V125165
DAC12AMPx = 5, DAC12IR = 1,
DAC12_xDAT  =  0800h,
VeREF+  = AVCC		250350
DAC12AMPx = 7, DAC12IR = 1,
DAC12_xDAT  =  0800h,
VeREF+  = AVCC		7501100
PSRRPower supply rejection ratio(3) (4)DAC12_xDAT = 800h,
VeREF+ = 1.16 V or 1.5 V,
ΔAVCC  =  100 mV		2.2 V to 3.6 V70dB
DAC12_xDAT = 800h,
VeREF+ = 1.16 V or 2.5 V
ΔAVCC  =  100 mV		3 V70
(1) No load at the output pin, DAC12_0 or DAC12_1, assuming that the control bits for the shared pins are set properly.
(2) Current into reference terminals not included. If DAC12IR = 1 current flows through the input divider; see Reference Input specifications Section 8.8.13.4.
(3) PSRR = 20 log (ΔAVCC / ΔVDAC12_xOUT)
(4) The internal reference is not used.

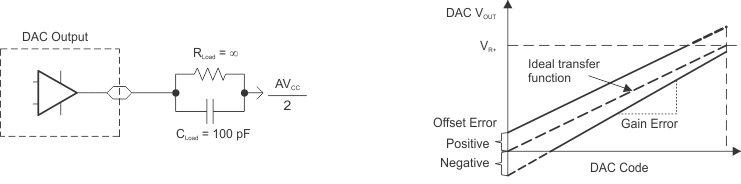

GUID-497A9F96-AA43-4D86-9997-3FC774A79E0F-low.gifFigure 8-19 Linearity Test Load Conditions, Gain and Offset Definition

Section 8.8.13.2 lists the linearity specifications of the DAC.
