Table 5-30 eUSCI (SPI Master Mode) Switching Characteristics

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1)
PARAMETER TEST CONDITIONS VCC MIN MAX UNIT
tSTE,LEAD STE lead time, STE active to clock UCSTEM = 0, UCMODEx = 01 or 10 2 V, 3 V 150 ns
UCSTEM = 1, UCMODEx = 01 or 10 2 V, 3 V 150
tSTE,LAG STE lag time, Last clock to STE inactive UCSTEM = 0, UCMODEx = 01 or 10 2 V, 3 V 200 ns
UCSTEM = 1, UCMODEx = 01 or 10 2 V, 3 V 200
tSTE,ACC STE access time, STE active to SIMO data out UCSTEM = 0, UCMODEx = 01 or 10 2 V 50 ns
3 V 30
UCSTEM = 1, UCMODEx = 01 or 10 2 V 50
3 V 30
tSTE,DIS STE disable time, STE inactive to SIMO high impedance UCSTEM = 0, UCMODEx = 01 or 10 2 V 40 ns
3 V 25
UCSTEM = 1, UCMODEx = 01 or 10 2 V 40
3 V 25
tSU,MI SOMI input data setup time 2 V 50 ns
3 V 30
tHD,MI SOMI input data hold time 2 V 0 ns
3 V 0
tVALID,MO SIMO output data valid time(2) UCLK edge to SIMO valid, CL = 20 pF 2 V 9 ns
3 V 5
tHD,MO SIMO output data hold time(3) CL = 20 pF 2 V 0 ns
3 V 0
(1) fUCxCLK = 1/2tLO/HI with tLO/HI = max(tVALID,MO(eUSCI) + tSU,SI(Slave), tSU,MI(eUSCI) + tVALID,SO(Slave))
For the slave parameters tSU,SI(Slave) and tVALID,SO(Slave), see the SPI parameters of the attached slave.
(2) Specifies the time to drive the next valid data to the SIMO output after the output changing UCLK clock edge. See the timing diagrams in Figure 5-13 and Figure 5-14.
(3) Specifies how long data on the SIMO output is valid after the output changing UCLK clock edge. Negative values indicate that the data on the SIMO output can become invalid before the output changing clock edge observed on UCLK. See the timing diagrams in Figure 5-13 and Figure 5-14.

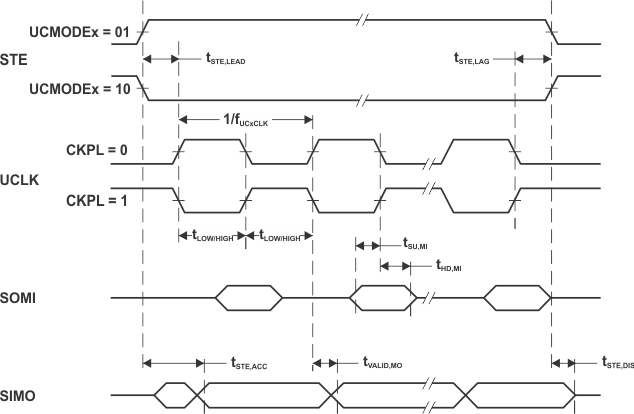

MSP430F6736A MSP430F6735A MSP430F6734A MSP430F6733A MSP430F6731A MSP430F6730A MSP430F6726A MSP430F6725A MSP430F6724A MSP430F6723A MSP430F6721A MSP430F6720A slase46-eUSCI_master_CKPH0.gifFigure 5-13 BadDriveBacuSPI Master Mode, CKPH = 0

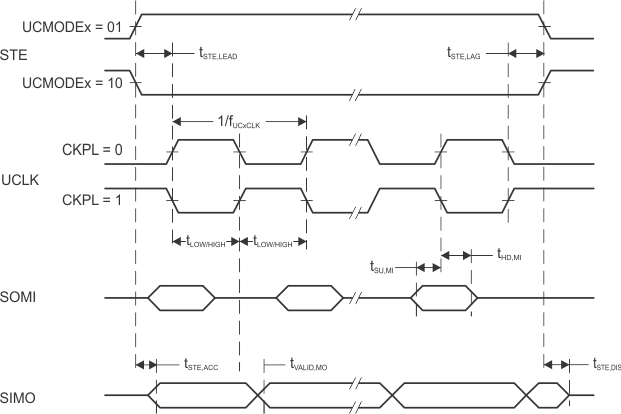

MSP430F6736A MSP430F6735A MSP430F6734A MSP430F6733A MSP430F6731A MSP430F6730A MSP430F6726A MSP430F6725A MSP430F6724A MSP430F6723A MSP430F6721A MSP430F6720A slase46-eUSCI_master_CKPH1.gifFigure 5-14 SPI Master Mode, CKPH = 1

Table 5-31 lists the switching characteristics of the eUSCI in SPI slave mode.
