8.20 Typical Characteristics – Outputs, Full Drive Strength (PxDS.y = 1)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

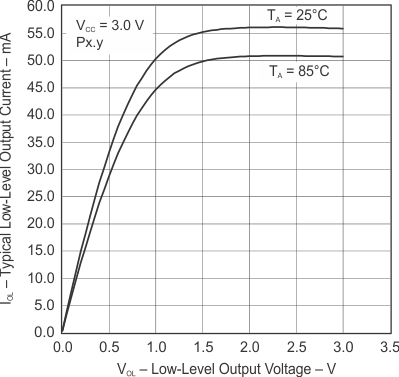

GUID-BB551B00-F38F-47DB-878D-D50D13EE55F4-low.gifFigure 8-8 Typical Low-Level Output Current vs
Low-Level Output Voltage
GUID-45B743F6-927B-47EA-B34B-06953CCBEEF8-low.gifFigure 8-10 Typical High-Level Output Current vs
High-Level Output Voltage

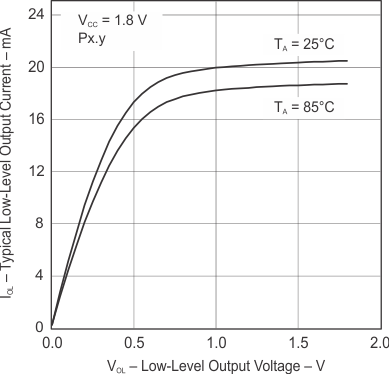

GUID-64B50AB3-95E5-453D-9418-519E07E2D52B-low.gifFigure 8-9 Typical Low-Level Output Current vs
Low-Level Output Voltage

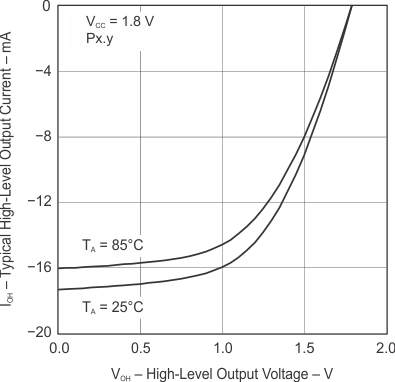

GUID-74AC4F8B-964F-4751-B2E8-492F4D32B47B-low.gifFigure 8-11 Typical High-Level Output Current vs
High-Level Output Voltage
