7.1 Pin Diagrams

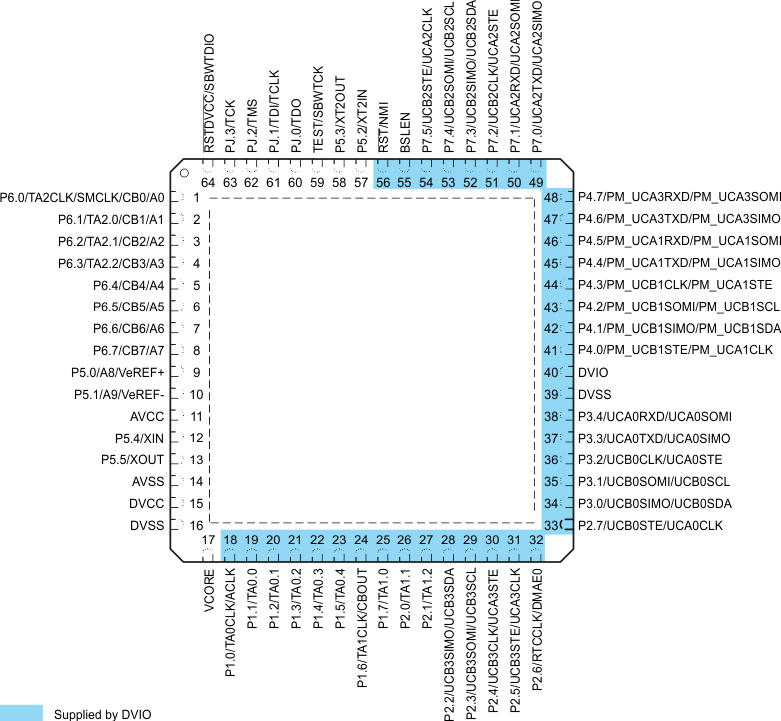

Figure 7-1 shows the pinout of the 64-pin RGC package.

GUID-79A10542-99B2-4823-AF7A-79B178CAFDB0-low.gif Figure 7-1 64-Pin RGC Package (Top View)

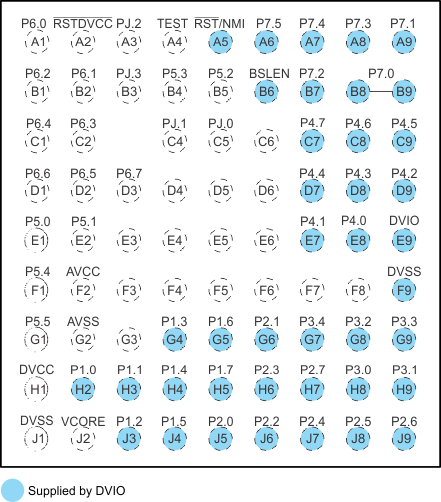

Figure 7-2 shows the pinout of the 80-pin ZXH or ZQE package.

GUID-865DA0CC-EEB0-44F6-814D-17EEB39D5AF9-low.gif Figure 7-2 80-Pin ZXH or ZQE Package (Top View)
