10.3 Theta JA vs PCB Area

The amount of PCB copper effects the thermal performance of the device. Figure 52 shows the effects of copper area on the junction-to-ambient thermal resistance (RθJA) of the LMZM33606. The junction-to-ambient thermal resistance is plotted for a 4-layer PCB and a 6-layer PCB with PCB area from 16 cm2 to 100 cm2.

To determine the required copper area for an application:

  1. Determine the maximum power dissipation of the device in the application by referencing the power dissipation graphs in the Typical Characteristics section.
  2. Calculate the maximum θJA using Equation 8 and the maximum ambient temperature of the application.
    3. Equation 8. LMZM33606 ThetaJAEq.gif
  3. Reference Figure 52 to determine the minimum required PCB area for the application conditions.

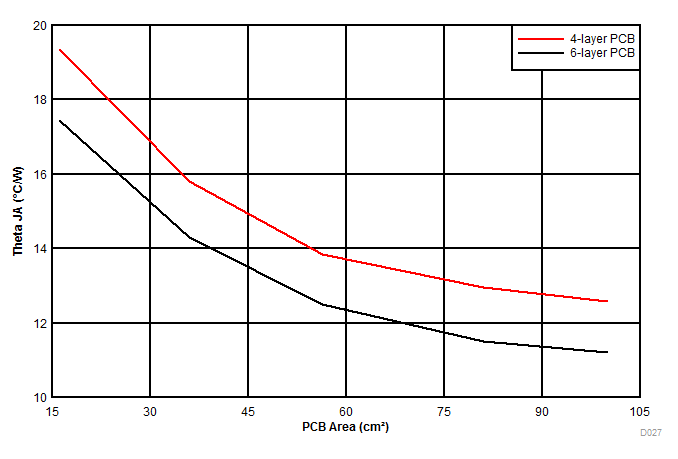

LMZM33606 D027_ThetaJA.gifFigure 52. θJA vs PCB Area
