7.3.14 Voltage Dropout

Voltage dropout is the minimum difference between the input voltage and output voltage that is required to maintain output voltage regulation while providing the rated output current.

To ensure the LMZM33606 maintains output voltage regulation at the recommended switching frequency, over the operating temperature range, the following requirements apply:

For output voltages ≤ 5 V, the minimum VIN is 3.5 V or (VOUT + 1 V), whichever is greater.

For output voltages > 5 V, the minimum VIN is (1.1 × VOUT).

space

However, if fixed switching frequency operation is not required, the LMZM33606 operates in a frequency foldback mode when the dropout voltage is less than the recommendations above. Frequency foldback reduces the switching frequency to allow the output voltage to maintain regulation as input voltage decreases. Figure 41 through Figure 44 show typical dropout voltage and frequency foldback curves for 5 V and 12 V outputs at TA = 25°C. (As ambient temperature increases, dropout voltage and frequency foldback occur at higher input voltages.)

LMZM33606 D024_5VDropOut.gif
VOUT = 5 V fSW = 500 kHz
Figure 41. Voltage Dropout
LMZM33606 D026_12VDropOut.gif
VOUT = 12 V fSW = 800 kHz
Figure 43. Voltage Dropout

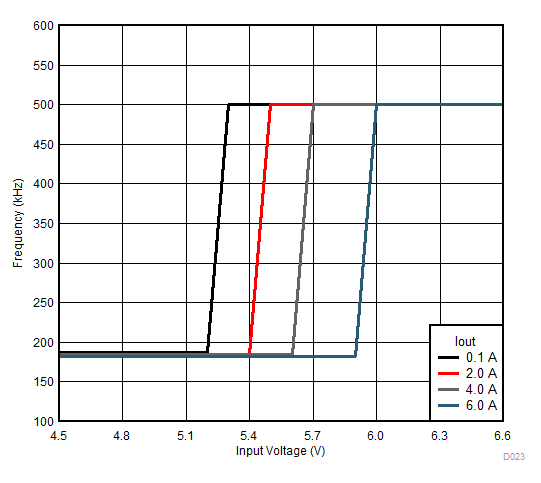

LMZM33606 D023_5VFreqFoldback.gif
VOUT = 5 V fSW = 500 kHz
Figure 42. Frequency Foldback
LMZM33606 D025_12VFreqFoldback.gif
VOUT = 12 V fSW = 800 kHz
Figure 44. Frequency Foldback
