Table 5-24 DMM Timing Requirements

MIN TYP MAX UNIT
tcyc(DMM) Clock period 15.4 ns
tR Clock rise time 1 3 ns
tF Clock fall time 1 3 ns
th(DMM) High pulse width 6 ns
tl(DMM) Low pulse width 6 ns
tssu(DMM) SYNC active to clk falling edge setup time 2 ns
tsh(DMM) DMM clk falling edge to SYNC deactive hold time 3 ns
tdsu(DMM) DATA to DMM clk falling edge setup time 2 ns
tdh(DMM) DMM clk falling edge to DATA hold time 3 ns

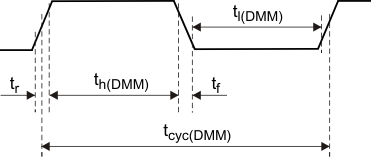

IWR1642 dmmclk_timing_pns160.gifFigure 5-18 DMMCLK Timing
IWR1642 dmmdata_timing_pns160.gifFigure 5-19 DMMDATA Timing
