Table 5-13 SPI Slave Mode Timing Requirements (SPICLK = input, SPISIMO = input,
and SPISOMI = output)

NO. MIN TYP MAX UNIT
6(1) tsu(SIMO-SPCL)S Setup time, SPISIMO before SPICLK low (clock polarity = 0) 3 ns
tsu(SIMO-SPCH)S Setup time, SPISIMO before SPICLK high (clock polarity = 1) 3
7(1) th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK low (clock polarity = 0) 0 ns
th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK low (clock polarity = 0) 0
6(1) tsu(SIMO-SPCL)S Setup time, SPISIMO before SPICLK low (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1) 3 ns
tsu(SIMO-SPCH)S Setup time, SPISIMO before SPICLK high (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1) 3
7(1) th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK low (clock polarity = 0; clock phase = 0) OR (clock polarity = 1; clock phase = 1) 1 ns
th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK high (clock polarity = 1; clock phase = 0) OR (clock polarity = 0; clock phase = 1) 1
(1) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

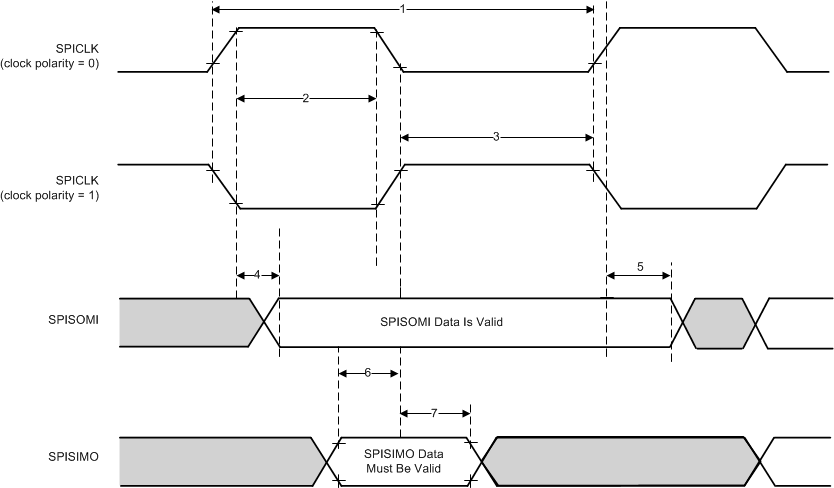

IWR1642 SPI_slave_mode_external_timing_phase0.gifFigure 5-8 SPI Slave Mode External Timing (CLOCK PHASE = 0)
IWR1642 SPI_slave_mode_external_timing_phase1.gifFigure 5-9 SPI Slave Mode External Timing (CLOCK PHASE = 1)
