5.7 RF Specification

over recommended operating conditions (unless otherwise noted)
PARAMETER MIN TYP MAX UNIT
Receiver Noise figure (Complex 1x mode) 76 to 77 GHz 14 dB
77 to 81 GHz 15
1-dB compression point –8 dBm
Maximum gain 48 dB
Gain range 24 dB
Gain step size 2 dB
Image Rejection Ratio (IMRR) 21 dB
IF bandwidth(1) 5 MHz
A2D sampling rate (real) 12.5 Msps
A2D sampling rate (complex) 6.25 Msps
A2D resolution 12 Bits
Return loss (S11) <–10 dB
Gain mismatch variation (over temperature) ±0.5 dB
Phase mismatch variation (over temperature) ±3 °
In-band IIP2 RX gain = 30dB
IF = 1.5, 2 MHz at
–12 dBFS		 20 dBm
Out-of-band IIP2 RX gain = 24dB
IF = 10 kHz at -10dBm,
1.9 MHz at -30 dBm		 35 dBm
Idle Channel Spurs –90 dBFS
Transmitter Output power 12.5 dBm
Amplitude noise –145 dBc/Hz
Clock subsystem Frequency range 76 81 GHz
Ramp rate 100 MHz/µs
Phase noise at 1-MHz offset 76 to 77 GHz –95 dBc/Hz
77 to 81 GHz –93
(1) The analog IF stages include high-pass filtering, with two independently configurable first-order high-pass corner frequencies. The set of available HPF corners is summarized as follows:
Available HPF Corner Frequencies (kHz)
HPF1 HPF2
175, 235, 350, 700 350, 700, 1400, 2800
The filtering performed by the baseband chain is targeted to provide:
  • Less than ±0.5 dB pass-band ripple/droop, and
  • Better than 60 dB anti-aliasing attenuation for any frequency that can alias back into the pass-band.

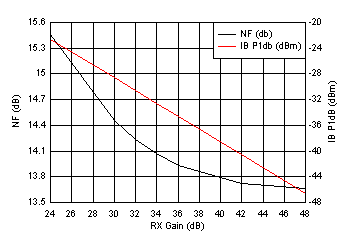

Figure 5-1 shows variations of noise figure and in-band P1dB parameters with respect to receiver gain programmed.

IWR1642 noise_figure_inband_vs_reciever.gifFigure 5-1 Noise Figure, In-band P1dB vs Receiver Gain
