Media Independent Interface

The Media Independent Interface (MII) is a synchronous 4-bit wide nibble data interface that connects the PHY to the MAC. The MII is fully compliant with IEEE 802.3-2015 clause 22. The PHY has internal series termination resistors on MII output pins including TX_CLK output when the PHY is operating in MII mode. In this mode, it is recommended to not leave the MII-TX pins floating or High-Z.

The MII signals are summarized in Table 8-4:

Table 8-4 MII Signals
FUNCTIONPINS
Data SignalsTX_D[3:0]
RX_D[3:0]
Control SignalsTX_EN, TX_ER
RX_DV, RX_ER
Clock SignalsTX_CLK
RX_CLK

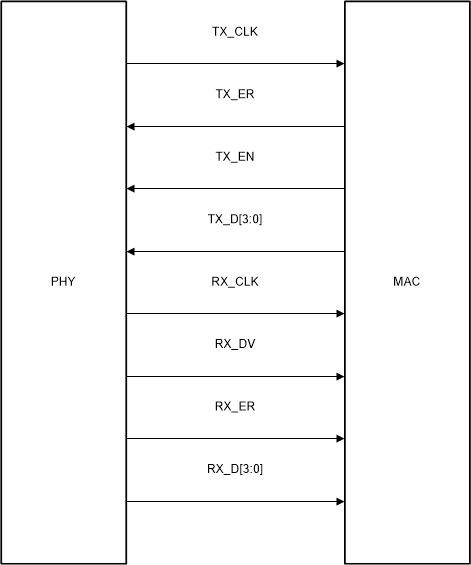

GUID-AAE61CEE-24D4-494A-BD42-B01170495574-low.gifFigure 8-11 MII Signaling
Table 8-5 MII Transmit Encoding
TX_ENTX_ERTX_D[3:0]DESCRIPTION
000000 through 1111Normal Inter-Frame
010000 through 1111Reserved
100000 through 1111Normal Data Transmission
110000 through 1111Transmit Error Propagation
Table 8-6 MII Receive Encoding
RX_DVRX_ERRX_D[3:0]DESCRIPTION
000000 through 1111Normal Inter-Frame
010000Normal Inter-Frame
010001 through 1101Reserved
011110False Carrier Indication
011111Reserved
100000 through 1111Normal Data Reception
110000 through 1111Data Reception with Errors
