Typical Characteristics

at TA = 25°C, VCC = 15 V, VSS = –15 V, AVDD = 5 V, IOVDD = 1.8 V, gain resistors unconnected (gain = 1x), OPA827 used as reference amplifier, OPA828 used as output amplifier, UP = unipolar, BP = bipolar, and temperature calibration disabled (unless otherwise noted)


Figure 6-3 Integral Linearity Error vs Digital Input Code
Figure 6-5 Integral Linearity Error vs Temperature
GUID-3C3B81AC-BDE4-44CF-A182-DA536C4D4445-low.gifFigure 6-7 Zero Code Error vs Temperature

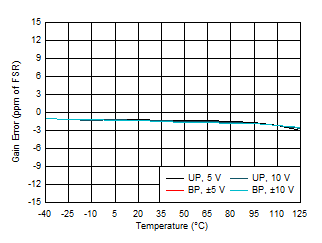

GUID-06F2BFAD-1B62-409D-AF16-F34E7975C710-low.gifFigure 6-9 Gain Error vs Temperature

Figure 6-11 Differential Linearity Error vs Supply Voltage

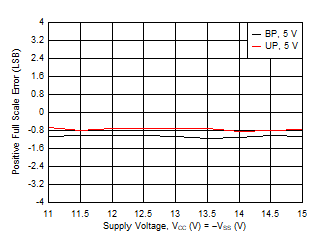

Figure 6-13 Positive Full-Scale Error vs Supply Voltage

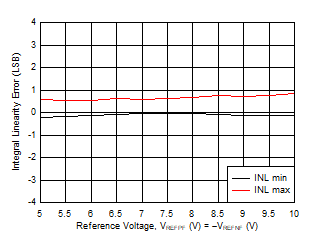

Figure 6-15 Integral Linearity Error vs Reference Voltage

Figure 6-17 Zero Code Error vs Reference Voltage

Figure 6-19 Positive Full-Scale Error vs Reference Voltage
VREFPF = 10 V, VREFNF = 0 V
Figure 6-21 Supply Current (VCC and VSS)
vs Digital Input Code
VREFPF = 10 V, VREFNF = 0 V
Figure 6-23 Supply Current (AVDD) vs Digital Input Code
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 6-25 Supply Current (VCC and VSS)
vs Temperature
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode

Figure 6-27 Supply Current (AVDD) vs Temperature
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 6-29 Supply Current (IOVDD)
vs Input Pin Logic Level
VREFPF = 10 V, VREFNF = –10 V,
DAC transition midcode – 1 to midcode

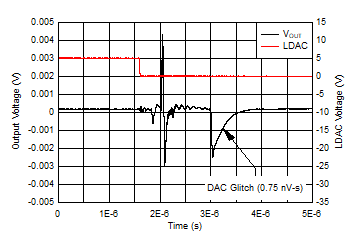

Figure 6-31 Glitch Impulse, Rising Edge, 1-LSB Step
VREFPF = 10 V, VREFNF = –10 V
Figure 6-33 Segment Glitch Impulse, 1-LSB Step
VREFPF = 5 V, VREFNF = 0 V

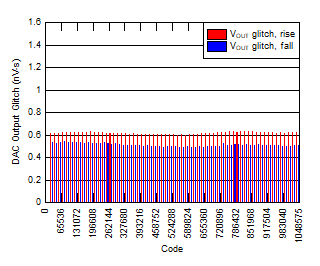

Figure 6-35 Segment Glitch Impulse, 1-LSB Step
VREFPF = 10 V, VREFNF = 0 V

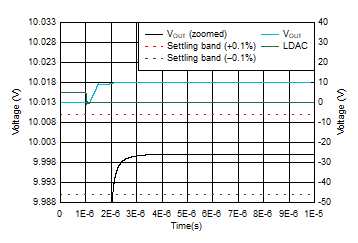

Figure 6-37 Full-Scale Settling Time, Rising Edge
VREFPF = 10 V, VREFNF = 0 V,
DAC transitions 100 codes around midscale
Figure 6-39 100 Codes Settling Time, Rising Edge
VREFPF = 10 V, VREFNF = 0 V, measured at DAC output
Figure 6-41 DAC Output Noise Spectral Density
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-43 1-kHz Spectrum vs Frequency
DAC update rate = 1 MHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 150-kHz output filter
Figure 6-45 100-kHz Spectrum vs Frequency
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-47 Total Harmonic Distortion
vs Output Frequency, fDAC = 768 kHz
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-49 Second Harmonic Distortion
vs Output Frequency, fDAC = 768 kHz
DAC update rate = 1 MHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 150-kHz output filter
Figure 6-51 Spurious Free Dynamic Range
vs Output Frequency, fDAC = 1 MHz
DAC update rate = 1 MHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 150-kHz output filter
Figure 6-53 Total Harmonic Distortion + Noise
vs Output Frequency, fDAC = 1 MHz
DAC update rate = 1 MHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 150-kHz output filter
Figure 6-55 Third Harmonic Distortion
vs Output Frequency, fDAC = 1 MHz
DAC output frequency = 20 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-57 Total Harmonic Distortion vs Update Rate
DAC output frequency = 20 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-59 Second Harmonic Distortion vs Update Rate

Figure 6-4 Differential Linearity Error vs Digital Input Code
Figure 6-6 Differential Linearity Error vs Temperature
GUID-AAEA653A-7BC4-429C-9010-92F007F3AA24-low.gifFigure 6-8 Positive Full-Scale Error vs Temperature

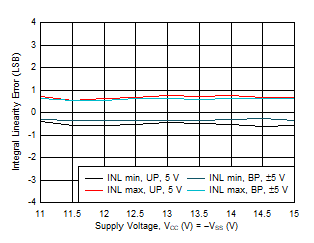

Figure 6-10 Integral Linearity Error vs Supply Voltage

Figure 6-12 Zero Code Error vs Supply Voltage

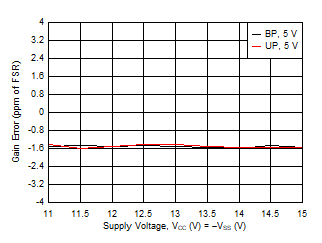

Figure 6-14 Gain Error vs Supply Voltage

Figure 6-16 Differential Linearity Error vs Reference Voltage

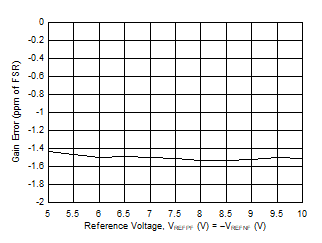

Figure 6-18 Gain Error vs Reference Voltage
VREFPF = 10 V, VREFNF = 0 V
Figure 6-20 Supply Current (DVDD and IOVDD) vs Digital Input Code
VREFPF = 10 V, VREFNF = 0 V
Figure 6-22 Reference Current (VREFPF and VREFNF) vs Digital Input Code
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 6-24 Supply Current (DVDD) vs Temperature
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 6-26 Reference Current (VREFPF and VREFNF)
vs Temperature
VREFPF = 5 V, VREFNF = 0 V, DAC at midcode
Figure 6-28 Supply Current (VCC and VSS) vs Supply Voltage
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 6-30 Supply Current (IOVDD)
vs Input Pin Logic Level
VREFPF = 10 V, VREFNF = –10 V,
DAC transition midcode to midcode – 1
Figure 6-32 Glitch Impulse, Falling Edge, 1-LSB Step
VREFPF = 10 V, VREFNF = 0 V
Figure 6-34 Segment Glitch Impulse, 1-LSB Step
VREFPF = 10 V, VREFNF = 0 V,
DAC at midcode, measured at DAC output pin
Figure 6-36 Clock Feedthrough
VREFPF = 10 V, VREFNF = 0 V

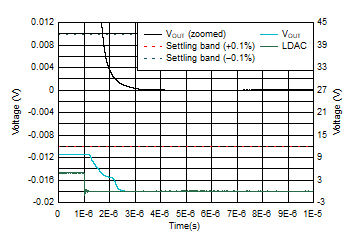

Figure 6-38 Full-Scale Settling Time, Falling Edge
VREFPF = 10 V, VREFNF = 0 V,
DAC transitions 100 codes around midscale
Figure 6-40 100 Codes Settling Time, Falling Edge
VREFPF = 10 V, VREFNF = 0 V,
DAC at midcode, measured at DAC output pin
Figure 6-42 DAC Output Noise: 0.1 Hz to 10 Hz
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-44 20-kHz Spectrum vs Frequency
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-46 Spurious Free Dynamic Range
vs Output Frequency, fDAC = 768 kHz
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-48 Total Harmonic Distortion + Noise
vs Output Frequency, fDAC = 768 kHz
DAC update rate = 768 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-50 Third Harmonic Distortion
vs Output Frequency, fDAC = 768 kHz
DAC update rate = 1 MHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 150-kHz output filter
Figure 6-52 Total Harmonic Distortion
vs Output Frequency, fDAC = 1 MHz
DAC update rate = 1 MHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 150-kHz output filter
Figure 6-54 Second Harmonic Distortion
vs Output Frequency, fDAC = 1 MHz
DAC output frequency = 20 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-56 Spurious Free Dynamic Range vs Update Rate
DAC output frequency = 20 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-58 Total Harmonic Distortion + Noise vs Update Rate
DAC output frequency = 20 kHz, VREFPF = 4.5 V, VREFNF = −4.5 V, sixth-order, low-pass, 30-kHz output filter
Figure 6-60 Third Harmonic Distortion vs Update Rate
