8.2.1 Application Curves

TJ = 125°C, unless stated otherwise.

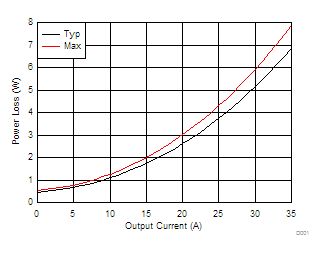

CSD95377Q4M D001_SLPS584.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 4. Power Loss vs Output Current
CSD95377Q4M D003_SLPS584.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 6. Safe Operating Area – PCB Horizontal Mount (1)
CSD95377Q4M D002_SLPS584.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 5. Power Loss vs Temperature
CSD95377Q4M D004_SLPS584.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 7. Typical Safe Operating Area (1)
  1. The typical CSD95377Q4M system characteristic curves are based on measurements made on a PCB design with dimensions of 4 in (W) × 3.5 in (L) × 0.062 in (T) and 6 copper layers of 1-oz copper thickness. See System Example for detailed explanation.
CSD95377Q4M D005_SLPS584.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
IOUT = 35 A LOUT = 0.29 µH
Figure 8. Normalized Power Loss vs Frequency
CSD95377Q4M D007_SLPS584.gif
VIN = 12 V VDD = 5 V IOUT = 35 A
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 10. Normalized Power Loss vs Output Voltage
CSD95377Q4M D009_SLPS584.gif
VIN = 12 V VDD = 5 V IOUT = 35 A
LOUT = 0.29 µH VOUT = 1.8 V
Figure 12. Driver Current vs Frequency
CSD95377Q4M D006_SLPS584.gif
IOUT = 35 A VDD = 5 V VOUT = 1.8 V
ƒSW = 500 kHz LOUT = 0.29 µH
Figure 9. Normalized Power Loss vs Input Voltage

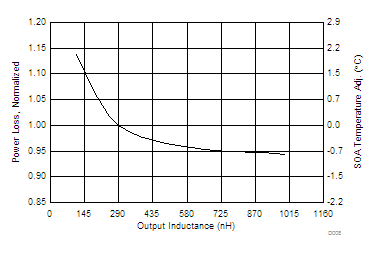

CSD95377Q4M D008_SLPS584.gif
VIN = 12 V VDD = 5 V IOUT = 35 A
ƒSW = 500 kHz VOUT = 1.8 V
Figure 11. Normalized Power Loss vs Output Inductance

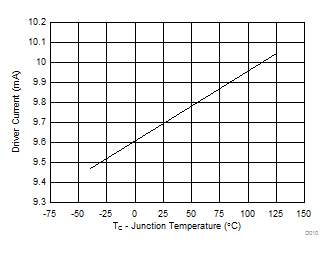

CSD95377Q4M D010_SLPS584.gif
VIN = 12 V VDD = 5 V VOUT = 1.8 V
IOUT = 35 A LOUT = 0.29 µH
Figure 13. Driver Current vs Temperature
