5.7 Typical Power Block MOSFET Characteristics

TA = 25°C, unless stated otherwise.
CSD87335Q3D D010_SLPS574.gif

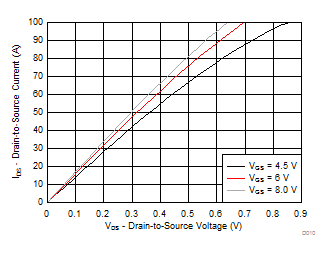

Figure 9. Control MOSFET Saturation
CSD87335Q3D D012_SLPS574.gif
VDS = 5 V

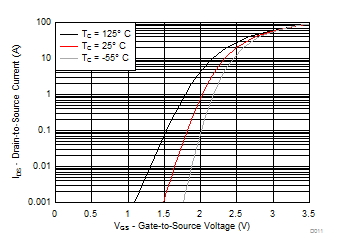

Figure 11. Control MOSFET Transfer
CSD87335Q3D D014_SLPS574.gif
ID = 15 A VDD = 15 V
Figure 13. Control MOSFET Gate Charge
CSD87335Q3D D016_SLPS574.gif

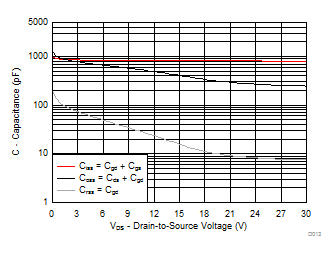

Figure 15. Control MOSFET Capacitance
CSD87335Q3D D018_SLPS574.gif
ID = 250 µA

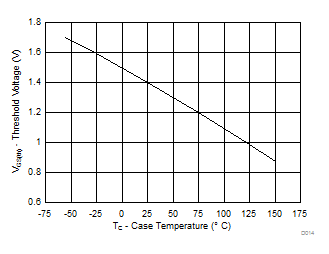

Figure 17. Control MOSFET VGS(th)
CSD87335Q3D D020_SLPS574_r2.gif

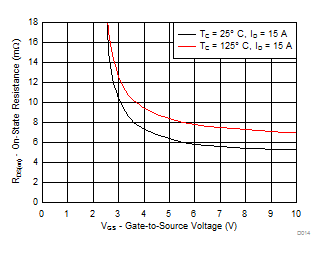

Figure 19. Control MOSFET RDS(on) vs VGS
CSD87335Q3D D022_SLPS574.gif
ID = 15 A VGS = 4.5 V

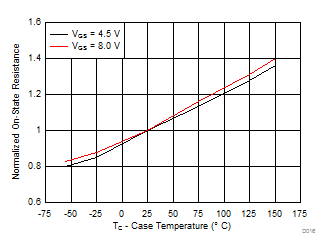

Figure 21. Control MOSFET Normalized RDS(on)
CSD87335Q3D D024_SLPS574.gif

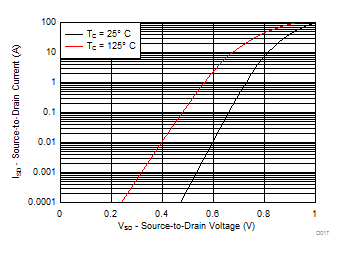

Figure 23. Control MOSFET Body Diode
CSD87335Q3D D026_SLPS574_r2.gif
Figure 25. Control MOSFET Unclamped Inductive Switching
CSD87335Q3D D011_SLPS574.gif

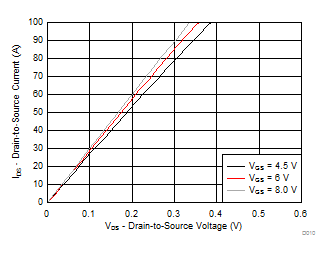

Figure 10. Sync MOSFET Saturation
CSD87335Q3D D013_SLPS574.gif
VDS = 5 V

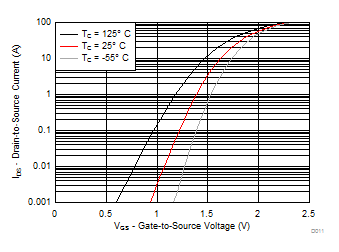

Figure 12. Sync MOSFET Transfer
CSD87335Q3D D015_SLPS574.gif
ID = 15 A VDD = 15 V
Figure 14. Sync MOSFET Gate Charge
CSD87335Q3D D017_SLPS574.gif

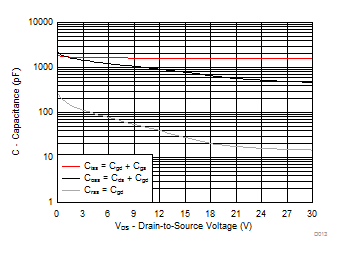

Figure 16. Sync MOSFET Capacitance
CSD87335Q3D D019_SLPS574.gif
ID = 250 µA

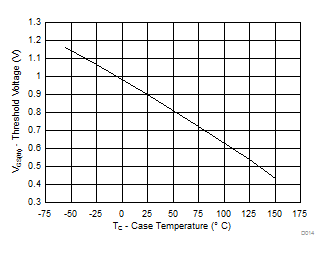

Figure 18. Sync MOSFET VGS(th)
CSD87335Q3D D021_SLPS574_r2.gif

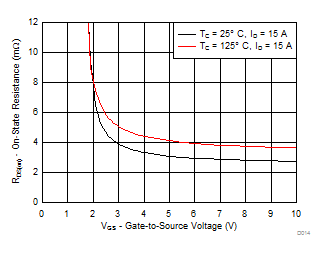

Figure 20. Sync MOSFET RDS(on) vs VGS
CSD87335Q3D D023_SLPS574.gif
ID = 15 A VGS = 4.5 V

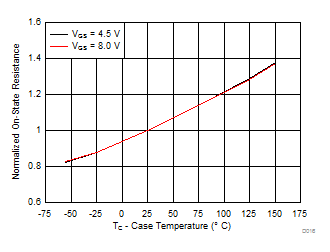

Figure 22. Sync MOSFET Normalized RDS(on)
CSD87335Q3D D025_SLPS574.gif
Figure 24. Sync MOSFET Body Diode
CSD87335Q3D D027_SLPS574_r2.gif

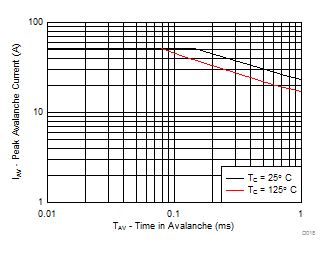

Figure 26. Sync MOSFET Unclamped Inductive Switching
