5.31 USCI (SPI Slave Mode)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)(1) (see Figure 5-18 and Figure 5-19)
PARAMETER TEST CONDITIONS PMMCOREVx VCC MIN MAX UNIT
tSTE,LEAD STE lead time, STE low to clock 0 1.8 V 11 ns
3 V 8
3 2.4 V 7
3 V 6
tSTE,LAG STE lag time, Last clock to STE high 0 1.8 V 3 ns
3 V 3
3 2.4 V 3
3 V 3
tSTE,ACC STE access time, STE low to SOMI data out 0 1.8 V 66 ns
3 V 50
3 2.4 V 36
3 V 30
tSTE,DIS STE disable time, STE high to SOMI high impedance 0 1.8 V 30 ns
3 V 23
3 2.4 V 16
3 V 13
tSU,SI SIMO input data setup time 0 1.8 V 5 ns
3 V 5
3 2.4 V 2
3 V 2
tHD,SI SIMO input data hold time 0 1.8 V 5 ns
3 V 5
3 2.4 V 5
3 V 5
tVALID,SO SOMI output data valid time(2) UCLK edge to SOMI valid,
CL = 20 pF		 0 1.8 V 76 ns
3 V 60
3 2.4 V 44
3 V 40
tHD,SO SOMI output data hold time(3) CL = 20 pF 0 1.8 V 18 ns
3 V 12
3 2.4 V 10
3 V 8
(1) fUCxCLK = 1/2tLO/HI with tLO/HI ≥ max(tVALID,MO(Master) + tSU,SI(USCI), tSU,MI(Master) + tVALID,SO(USCI))
For the master parameters tSU,MI(Master) and tVALID,MO(Master), see the SPI parameters of the attached master.
(2) Specifies the time to drive the next valid data to the SOMI output after the output changing UCLK clock edge. See the timing diagrams in Figure 5-18 and Figure 5-19.
(3) Specifies how long data on the SOMI output is valid after the output changing UCLK clock edge. See the timing diagrams in Figure 5-18 and Figure 5-19.
CC430F6147 CC430F6145 CC430F6143 CC430F5147 CC430F5145 CC430F5143 CC430F5125 CC430F5123 spi_slv_ckph0.gifFigure 5-18 SPI Slave Mode, CKPH = 0

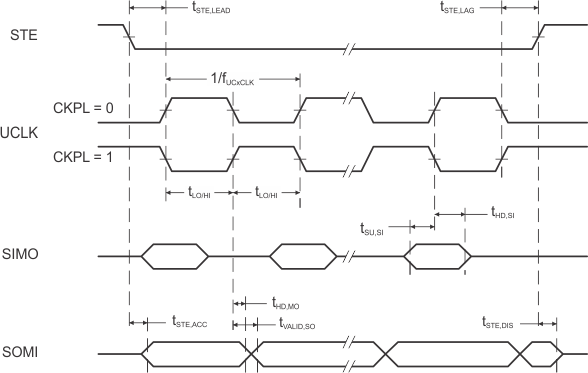

CC430F6147 CC430F6145 CC430F6143 CC430F5147 CC430F5145 CC430F5143 CC430F5125 CC430F5123 spi_slv_ckph1.gifFigure 5-19 SPI Slave Mode, CKPH = 1
