6.12.6 Port P5 (P5.0 and P5.1) Input/Output With Schmitt Trigger

Figure 6-10 and Figure 6-11 show the port diagrams. Table 6-50 summarizes the selection of the pin functions.

CC430F6147 CC430F6145 CC430F6143 CC430F5147 CC430F5145 CC430F5143 CC430F5125 CC430F5123 p5_0.gifFigure 6-10 Port P5 (P5.0) Diagram

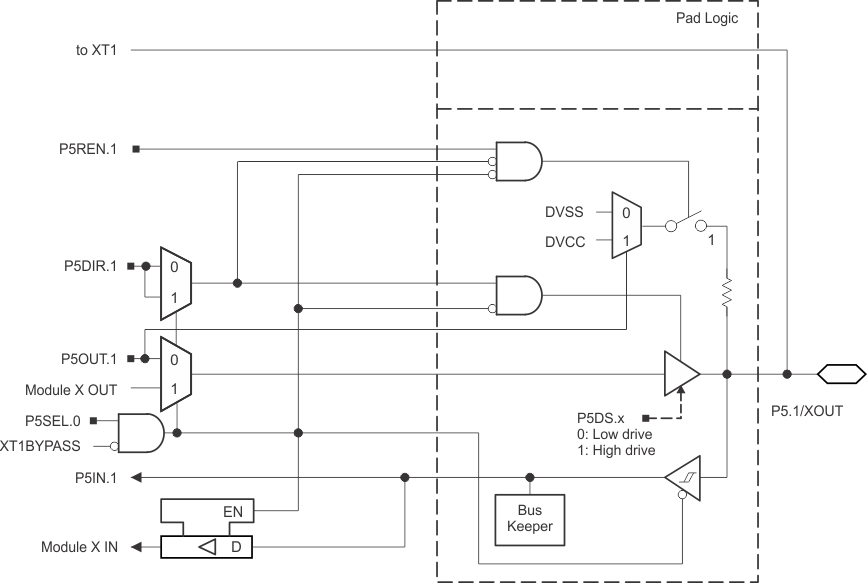

CC430F6147 CC430F6145 CC430F6143 CC430F5147 CC430F5145 CC430F5143 CC430F5125 CC430F5123 p5_1.gifFigure 6-11 Port P5 (P5.1) Diagram

Table 6-50 Port P5 (P5.0 and P5.1) Pin Functions

PIN NAME (P5.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P5DIR.x P5SEL.0 P5SEL.1 XT1BYPASS
P5.0/XIN 0 P5.0 (I/O) I: 0; O: 1 0 X X
XIN crystal mode(2) X 1 X 0
XIN bypass mode(2) X 1 X 1
P5.1/XOUT 1 P5.1 (I/O) I: 0; O: 1 0 X X
XOUT crystal mode(3) X 1 X 0
P5.1 (I/O)(3) X 1 X 1
(1) X = Don't care
(2) Setting P5SEL.0 causes the general-purpose I/O to be disabled. Pending the setting of XT1BYPASS, P5.0 is configured for crystal mode or bypass mode.
(3) Setting P5SEL.0 causes the general-purpose I/O to be disabled in crystal mode. When using bypass mode, P5.1 can be used as general-purpose I/O.
