8.14.5.2.1 I2S Transmit Mode

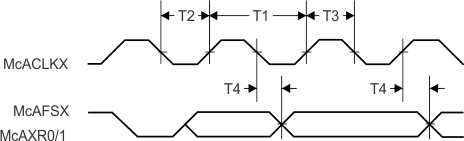

Figure 8-10 shows the timing diagram for the I2S transmit mode.

GUID-97B4F56F-C448-4AAE-AF3E-1340A16DD1EA-low.gifFigure 8-10 I2S Transmit Mode Timing Diagram

Table 8-6 lists the timing parameters for the I2S transmit mode.

Table 8-6 I2S Transmit Mode Timing Parameters
ITEMNAMEDESCRIPTIONMINMAXUNIT
T1fclk(1)Clock frequency9.216MHz
T2tLP(1)Clock low period1/2 fclkns
T3tHT(1)Clock high period1/2 fclkns
T4tOH(1)TX data hold time22ns
(1) Timing parameter assumes a maximum load of 20 pF.
