6.7.8 Enhanced Quadrature Encoder Pulse (eQEP)

The eQEP module on this device is Type-2. The eQEP interfaces directly with linear or rotary incremental encoders to obtain position, direction, and speed information from rotating machines used in high-performance motion and position control systems.

The eQEP peripheral contains the following major functional units:

  • Programmable input qualification for each pin (part of the GPIO MUX)
  • Quadrature decoder unit (QDU)
  • Position counter and control unit for position measurement (PCCU)
  • Quadrature edge-capture unit for low-speed measurement (QCAP)
  • Unit time base for speed/frequency measurement (UTIME)
  • Watchdog timer for detecting stalls (QWDOG)
  • Quadrature Mode Adapter (QMA)

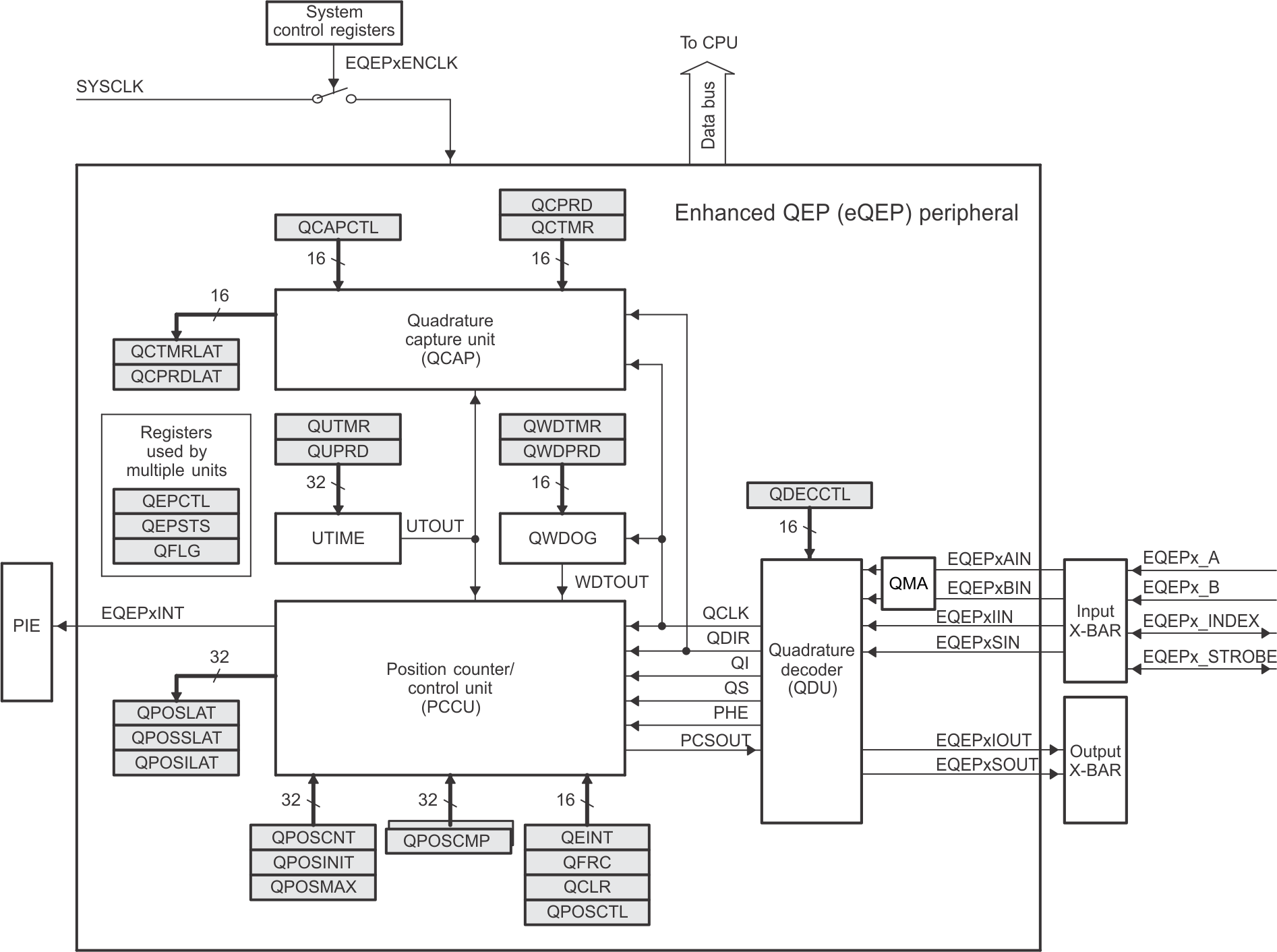

AM13E23019 AM13E23018 AM13E23017 eQEP Block Diagram Figure 6-5 eQEP Block Diagram
