5.12.1 RX Typical Characteristics 30 MHz and 400 MHz

Typical values at TA = +25°C. Default conditions at 30MHz: ADC Sampling Rate = 1500 MSPS, output sample rate = 62.5 MSPS (decimate by 24x), PLL clock mode with fREF = 500 MHz, AIN = –3 dBFS, DSA setting = 3 dB. Default conditions at 400 MHz: ADC Sampling Rate = 1500 MSPS, output sample rate = 125 MSPS (decimate by 12x), PLL clock mode with fREF = 500 MHz, AIN = –3 dBFS, DSA setting = 3 dB.

GUID-20210422-CA0I-MFRX-ZJPT-HVQ8NZNGN93M-low.svg
Normalized to 30 MHz
Figure 5-1 RX In-Band Gain Flatness, fIN = 30 MHz
GUID-20210422-CA0I-ZQJC-ZKKR-WCDQHSKD5JHP-low.svg
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 5-3 RX Calibrated Differential Amplitude Error vs DSA Setting at 30 MHz
GUID-20210422-CA0I-KTN3-RN08-XVGVCQHGMZ0R-low.svg
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 5-5 RX Calibrated Integrated Amplitude Error vs DSA Setting at 30 MHz
GUID-20210422-CA0I-ZGST-BPLL-DQMKPP0VSN0J-low.svg
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 5-7 RX Calibrated Differential Phase Error vs DSA Setting at 30 MHz
GUID-20210422-CA0I-QZHN-MZSW-TKQTDHHCSK3T-low.svg
With 0.8 GHz matching
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 5-9 RX Calibrated Integrated Phase Error vs DSA Setting at 30 MHz
AIN = -6 dBFS, fADC = 1500 MSPS, fNCO = 32. , Decimate by 24x
Figure 5-11 RX Output FFT at 5 MHz
AIN = -30 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-13 RX Output FFT at 5 MHz
AIN = -3 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-15 RX Output FFT at 30 MHz
AIN = -12 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-17 RX Output FFT at 30 MHz

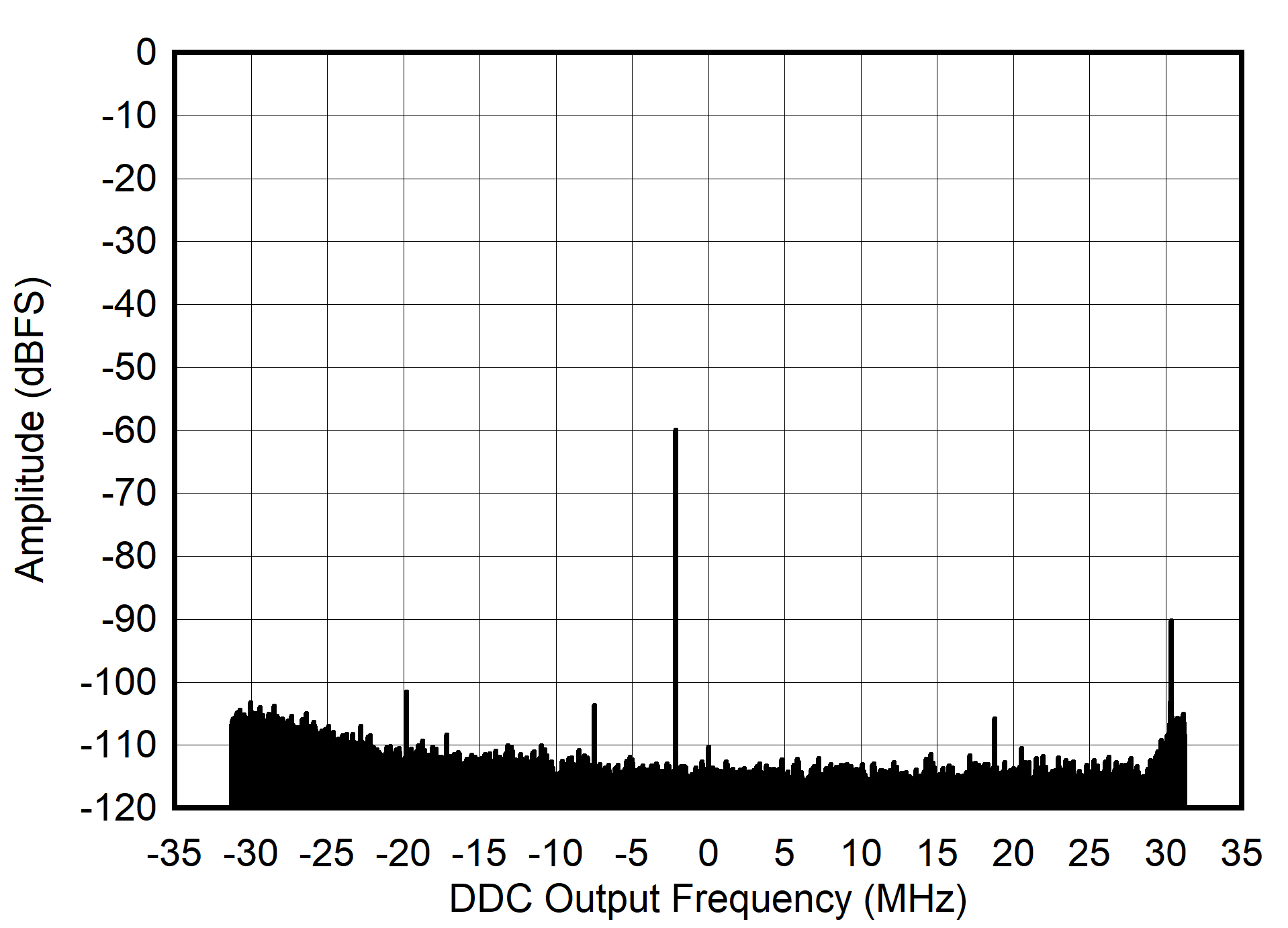

AIN = -60 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-19 RX Output FFT at 30 MHz
GUID-20210422-CA0I-LNCJ-0KNG-V8LQWGHCDBPM-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-21 NSD vs Input Amplitude at 30 MHz with DSA = 12
GUID-20210422-CA0I-7QDD-PXSP-GVKTDBXDMMCZ-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-23 IMD3 vs Input Amplitude at 30 MHz
GUID-20210422-CA0I-WF8M-1BDV-3GTDJFV2SJ3T-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-25 HD2 vs Input Amplitude at 30 MHz
GUID-20210422-CA0I-LPFR-RGNS-B3KFBZ6J1R7Z-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-27 HD3 vs Input Amplitude at 30 MHz
Normalized to 4000 MHz
Figure 5-29 RX In-Band Gain Flatness, fIN = 400 MHz
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 5-31 RX Calibrated Differential Amplitude Error vs DSA Setting at 400 MHz
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 5-33 RX Calibrated Integrated Amplitude Error vs DSA Setting at 400 MHz
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 5-35 RX Calibrated Differential Phase Error vs DSA Setting at 400 MHz
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 5-37 RX Calibrated Integrated Phase Error vs DSA Setting at 400 MHz
fNCO = 400MHz
Figure 5-39 RX Output FFT at 405 MHz and -6dBFS
fNCO = 400MHz
Figure 5-41 RX Output FFT at 405 MHz and -30dBFS
fOFFSET = 50MHz
Figure 5-43 NSD vs Input Amplitude at 400MHz
Figure 5-45 IMD3 vs Input Amplitude at 400MHz
Figure 5-47 IMD3 vs Tone Spacing at 400MHz
Figure 5-49 HD3 vs DSA Setting at 400MHz
GUID-20210422-CA0I-RLZH-5MFV-WFQXNG1PDWDX-low.svg
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 5-2 RX Uncalibrated Differential Amplitude Error vs DSA Setting at 30 MHz
GUID-20210422-CA0I-RMXJ-DV5J-ZWSRJLWN3GXS-low.svg
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 5-4 RX Uncalibrated Integrated Amplitude Error vs DSA Setting at 30 MHz
GUID-20210422-CA0I-VQN1-RR6K-M5HGMGRG13FD-low.svg
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 5-6 RX Uncalibrated Differential Phase Error vs DSA Setting at 30 MHz
GUID-20210422-CA0I-50DG-Z6VC-QC8VQBFNKHGZ-low.svg
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 5-8 RX Uncalibrated Integrated Phase Error vs DSA Setting at 30 MHz
AIN = -3 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-10 RX Output FFT at 5 MHz
AIN = -12 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-12 RX Output FFT at 5 MHz
AIN = -60 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-14 RX Output FFT at 5 MHz
AIN = -6 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-16 RX Output FFT at 30 MHz
AIN = -30 dBFS, fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-18 RX Output FFT at 30 MHz
GUID-20210422-CA0I-RFVM-NH9C-Z6SBJHLNNKQ7-low.svg
fADC = 1500MSPS, fNCO = 32.13MHz, Decimate by 24x
Figure 5-20 NSD vs Input Amplitude at 30 MHz with DSA = 0 and 3dB
GUID-20210422-CA0I-LHQZ-V1QN-TC1WTNRNFR2H-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-22 NSD vs DSA Attenuation at 30 MHz
GUID-20210422-CA0I-HS8Z-8TQQ-DXV8NHW4SDNX-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-24 IMD3 vs DSA Setting at 30 MHz
GUID-20210422-CA0I-LVSG-PLHQ-CS807XRPF7RB-low.svg
fADC = 1500 MSPS, fNCO = 32. , Decimate by 24x
Figure 5-26 HD2 vs DSA Setting at 30 MHz
GUID-20210422-CA0I-6KXS-3ZLV-SP17DXMGHRZP-low.svg
fADC = 1500 MSPS, fNCO = 32.13 MHz, Decimate by 24x
Figure 5-28 HD3 vs DSA Setting at 30 MHz
Differential Amplitude Error = PIN(DSA Setting – 1) – PIN(DSA Setting) + 1
Figure 5-30 RX Uncalibrated Differential Amplitude Error vs DSA Setting at 30 MHz
Integrated Amplitude Error = PIN(DSA Setting) – PIN(DSA Setting = 0) + (DSA Setting)
Figure 5-32 RX Uncalibrated Integrated Amplitude Error vs DSA Setting at 400 MHz
Differential Phase Error = PhaseIN(DSA Setting – 1) – PhaseIN(DSA Setting)
Figure 5-34 RX Uncalibrated Differential Phase Error vs DSA Setting at 400 MHz
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 5-36 RX Uncalibrated Integrated Phase Error vs DSA Setting at 400 MHz
fNCO = 400MHz
Figure 5-38 RX Output FFT at 405 MHz and -3dBFS
fNCO = 400MHz
Figure 5-40 RX Output FFT at 405 MHz and -12dBFS
fNCO = 400MHz
Figure 5-42 RX Output FFT at 405 MHz and -60dBFS
fOFFSET = 50MHz
Figure 5-44 NSD vs DSA Setting at 400MHz
Figure 5-46 IMD3 vs DSA Setting at 400MHz
Figure 5-48 HD3 vs Input Amplitude at 400MHz
