ADC Transfer Function

The device output is in binary twos complement format. Device resolution is calculated by Equation 6:

Equation 6. 1 LSB = (FSR_ADC_x) / (2N)

where

  • FSR_ADC_x = 2 x VREFIN_x and
  • N is the resolution of the ADC : N = 16 for the ADS8350, N = 14 for the ADS7850, and N = 12 for the ADS7250

Table 1 shows the different input voltages and the corresponding device output codes.

Table 1. Transfer Characteristics

INPUT VOLTAGE
(AINM_x)
INPUT VOLTAGE
(AINP_x)
PSEUDO-DIFFERENTIAL INPUT TO ADC
(AINP_x - AINM_x)
OUTPUT CODE (HEX)
CODE ADS7250 ADS7850 ADS8350
VREFIN_x 0 –VREFIN_x NFSR NFSC 800 2000 8000
1 LSB – VREFIN_x + 1 LSB NFSR + 1 LSB NFSC + 1 801 2001 8001
VREFIN_x – 1 LSB –1 LSB –1 LSB MC FFF 3FFF FFFF
VREFIN_x 0 0 PLC 000 0000 0000
2 × VREFIN_x – 1 LSB VREFIN_x – 1 LSB PFSR – 1 LSB PFSC 7FF 1FFF 7FFF

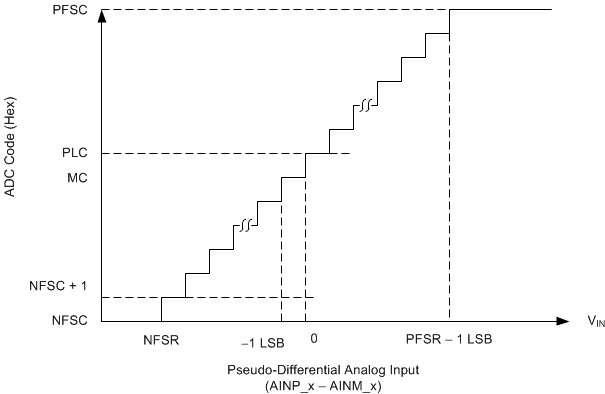

Figure 51 shows the ideal transfer characteristics for the device.

ADS8350 ADS7850 ADS7250 ai_transfer_chara_diff_bas587.gifFigure 51. Ideal Transfer Characteristics
