6.12 Typical Characteristics: ADS7850

at TA = 25°C, AVDD = 5 V, DVDD = 3.3 V, VREF = 2.5 V, and fDATA = 750 kSPS (unless otherwise noted)
ADS8350 ADS7850 ADS7250 C046_SBAS580.png
Figure 17. Typical DNL
ADS8350 ADS7850 ADS7250 C044_SBAS580.png

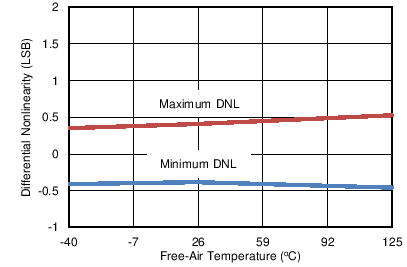

Figure 19. DNL vs Device Temperature
ADS8350 ADS7850 ADS7250 C031_SBAS580.png

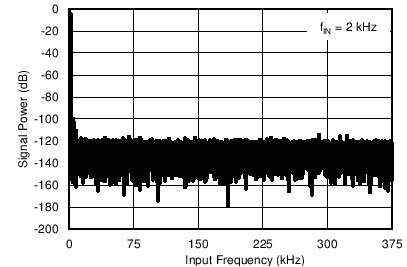

Figure 21. Typical FFT at 2-kHz Input
ADS8350 ADS7850 ADS7250 C035_SBAS580.png

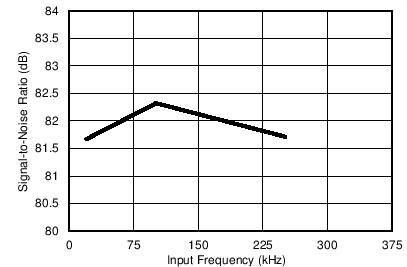

Figure 23. SNR vs Input Frequency
ADS8350 ADS7850 ADS7250 C036_SBAS580.png

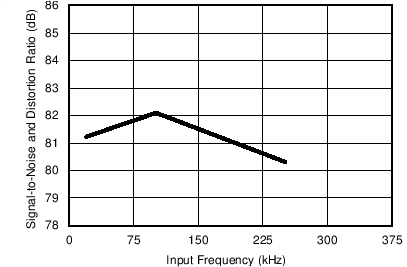

Figure 25. SINAD vs Input Frequency
ADS8350 ADS7850 ADS7250 C037_SBAS580.png

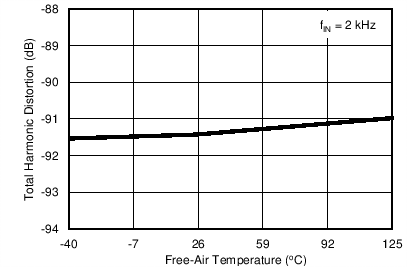

Figure 27. THD vs Device Temperature
ADS8350 ADS7850 ADS7250 C042_SBAS580.png

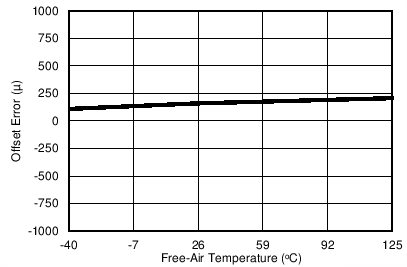

Figure 29. Offset Error vs Device Temperature
ADS8350 ADS7850 ADS7250 C041_SBAS580.png
Figure 31. DC Histogram
ADS8350 ADS7850 ADS7250 C047_SBAS580.png

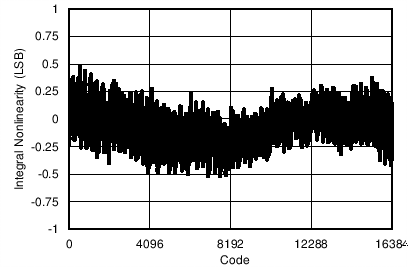

Figure 18. Typical INL
ADS8350 ADS7850 ADS7250 C045_SBAS580.png

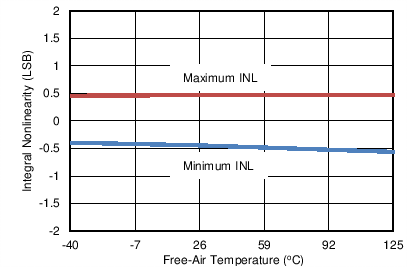

Figure 20. INL vs Device Temperature
ADS8350 ADS7850 ADS7250 C032_SBAS580.png

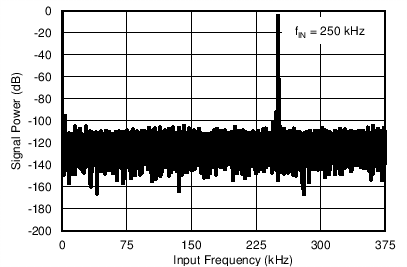

Figure 22. Typical FFT at 250-kHz Input
ADS8350 ADS7850 ADS7250 C039_SBAS580.png

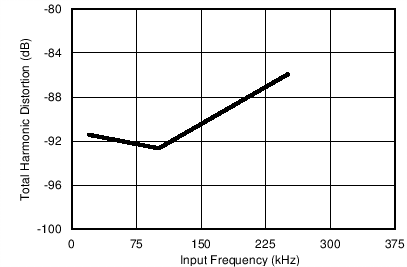

Figure 24. THD vs Input Frequency
ADS8350 ADS7850 ADS7250 C033_SBAS580.png
Figure 26. SNR vs Device Temperature
ADS8350 ADS7850 ADS7250 C034_SBAS580.png

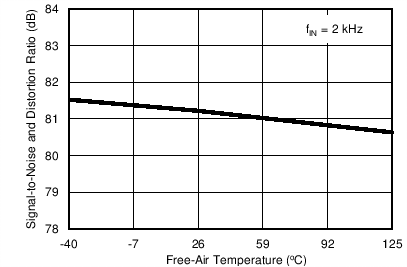

Figure 28. SINAD vs Device Temperature
ADS8350 ADS7850 ADS7250 C043_SBAS580.png
Figure 30. Gain Error vs Device Temperature
