7.5.2 Serial Register Readout

The device includes a mode where the contents of the internal registers can be read back using the SDOUT and SDATA pins. This read-back mode may be useful as a diagnostic check to verify the serial interface communication between the external controller and the channel.

  1. Drive SDENb pin low.
  2. Set the RW bit (A7) to 1. This setting disables any further writes to the registers.
  3. Initiate a serial interface cycle specifying the address of the register (A6 to A0) whose content has to be read.
  4. The device outputs the contents (D15 to D0) of the selected register on the SDOUT/SDATA pin.
  5. The external controller can latch the contents at the SCLK rising edge.
  6. To enable register writes, reset the RW register bit to 0.

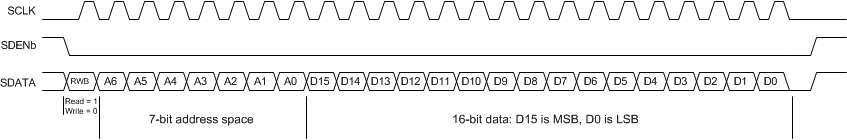

ADS54J54 tim_SerialR_BAS659.gifFigure 71. Serial Register Read Timing Diagram
